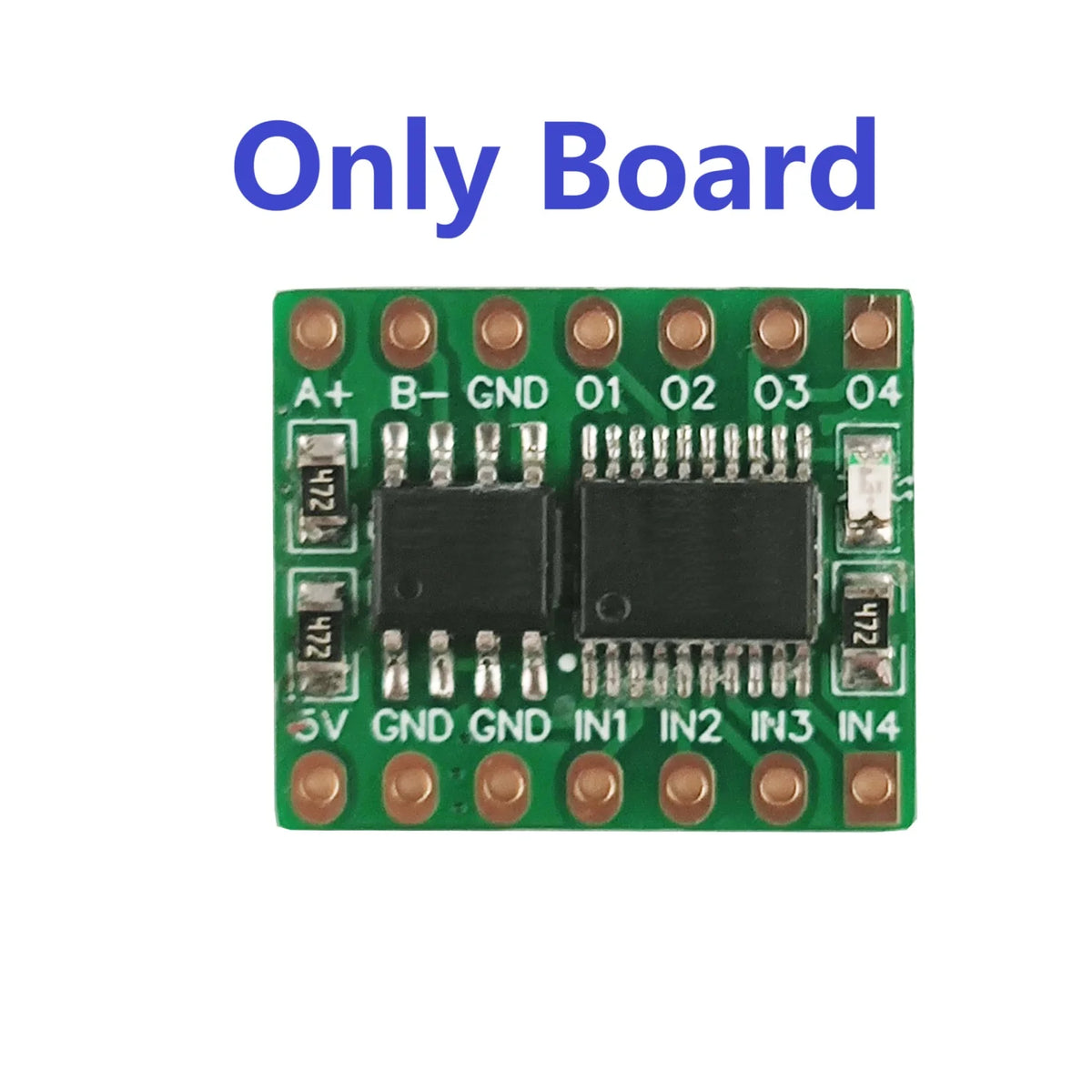

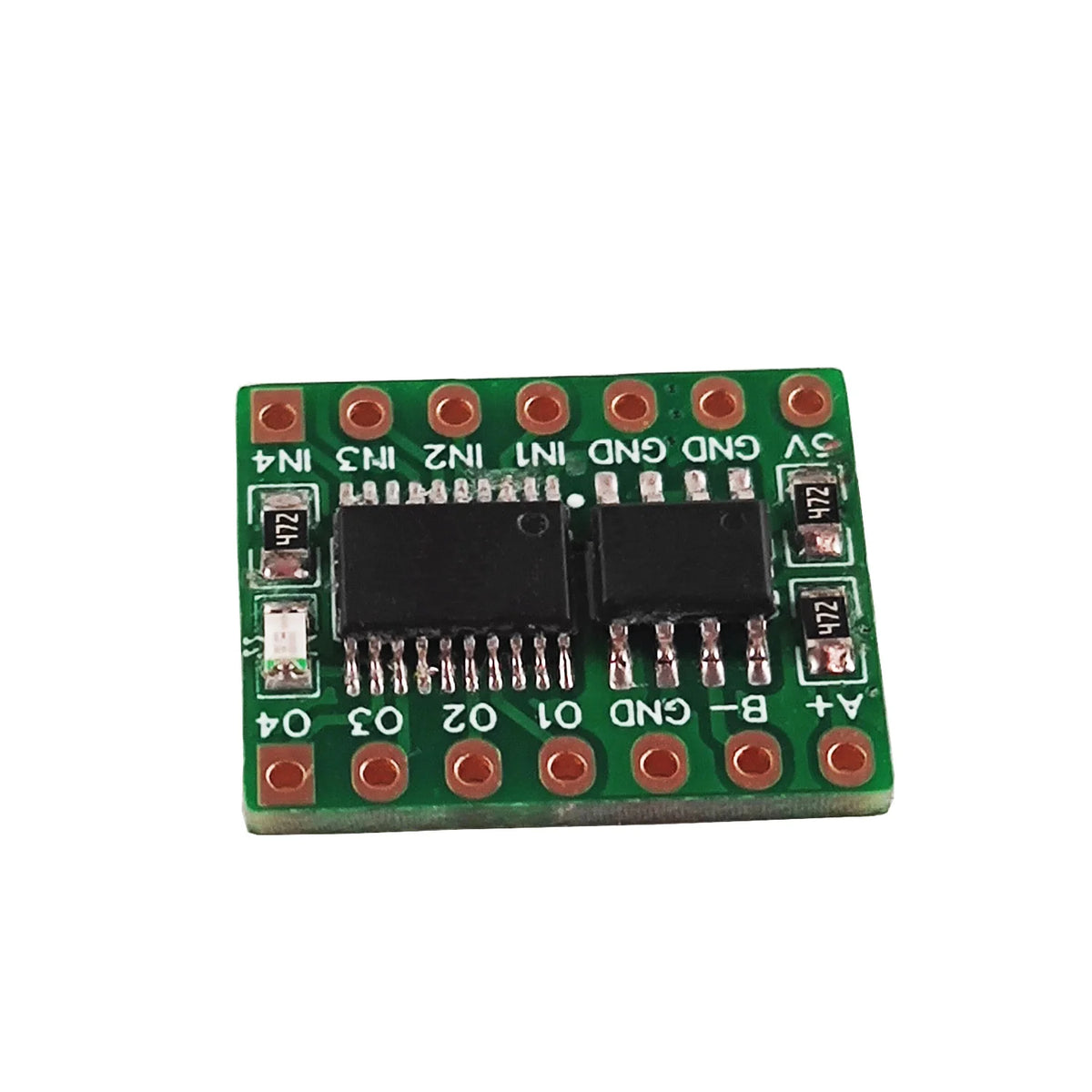

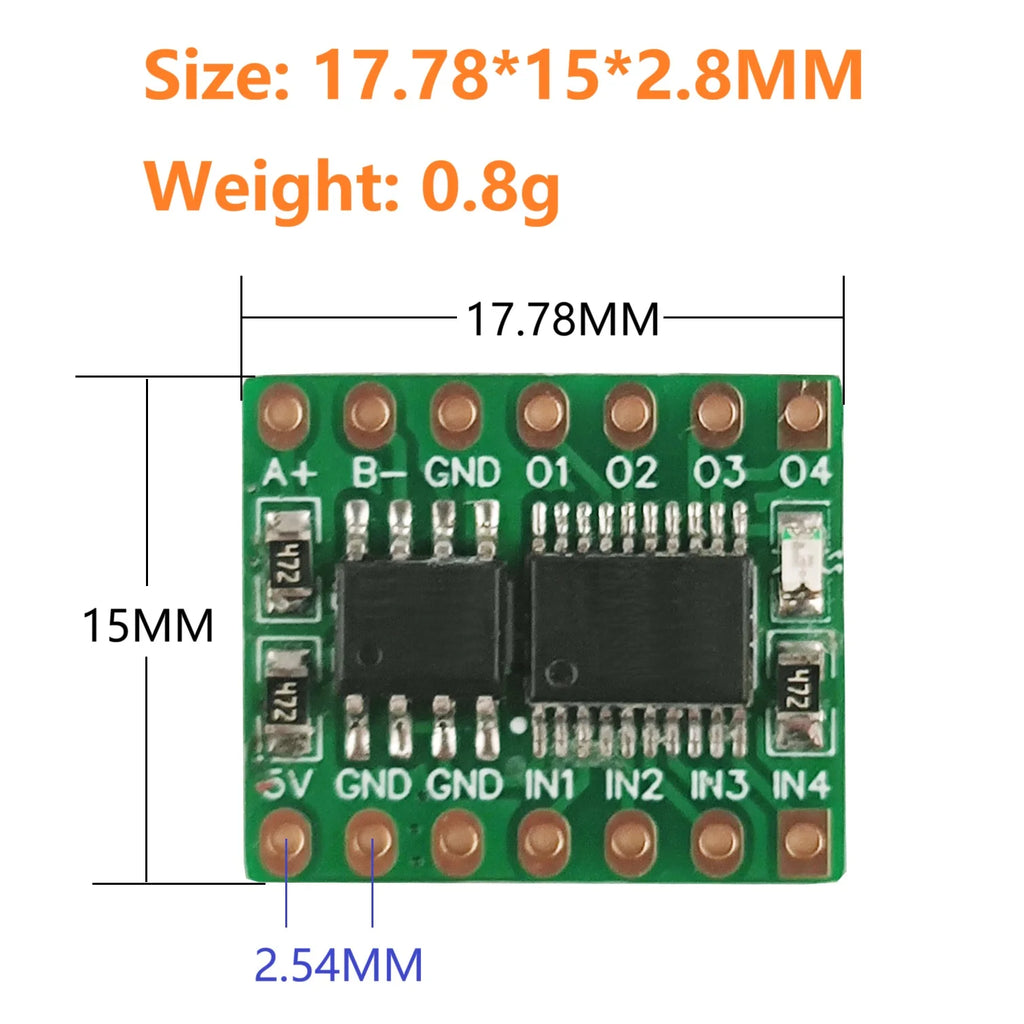

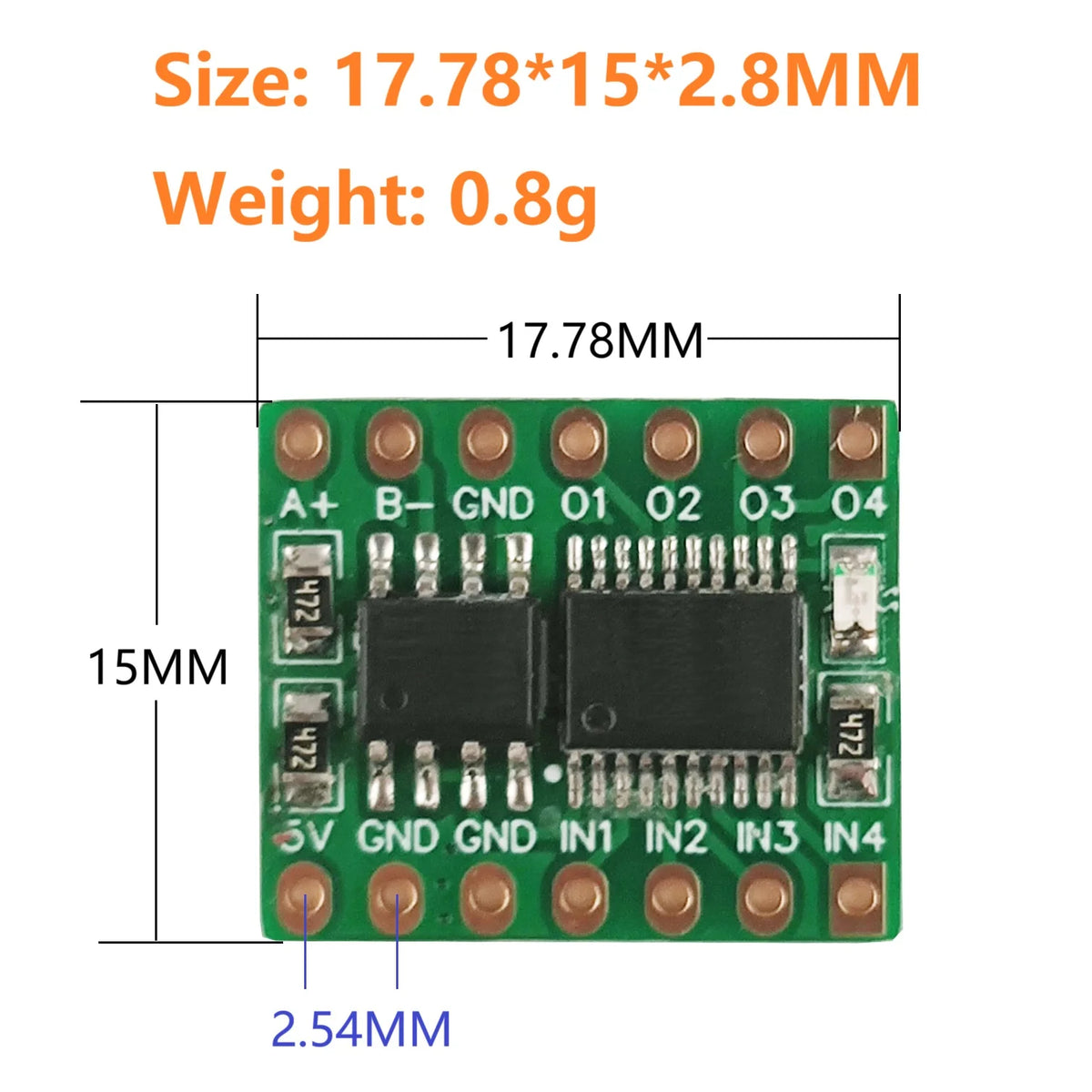

4DI-4DO Modbus RTU RS485 IO Module NPN PNP Pulse Counter PLC R4PLB04

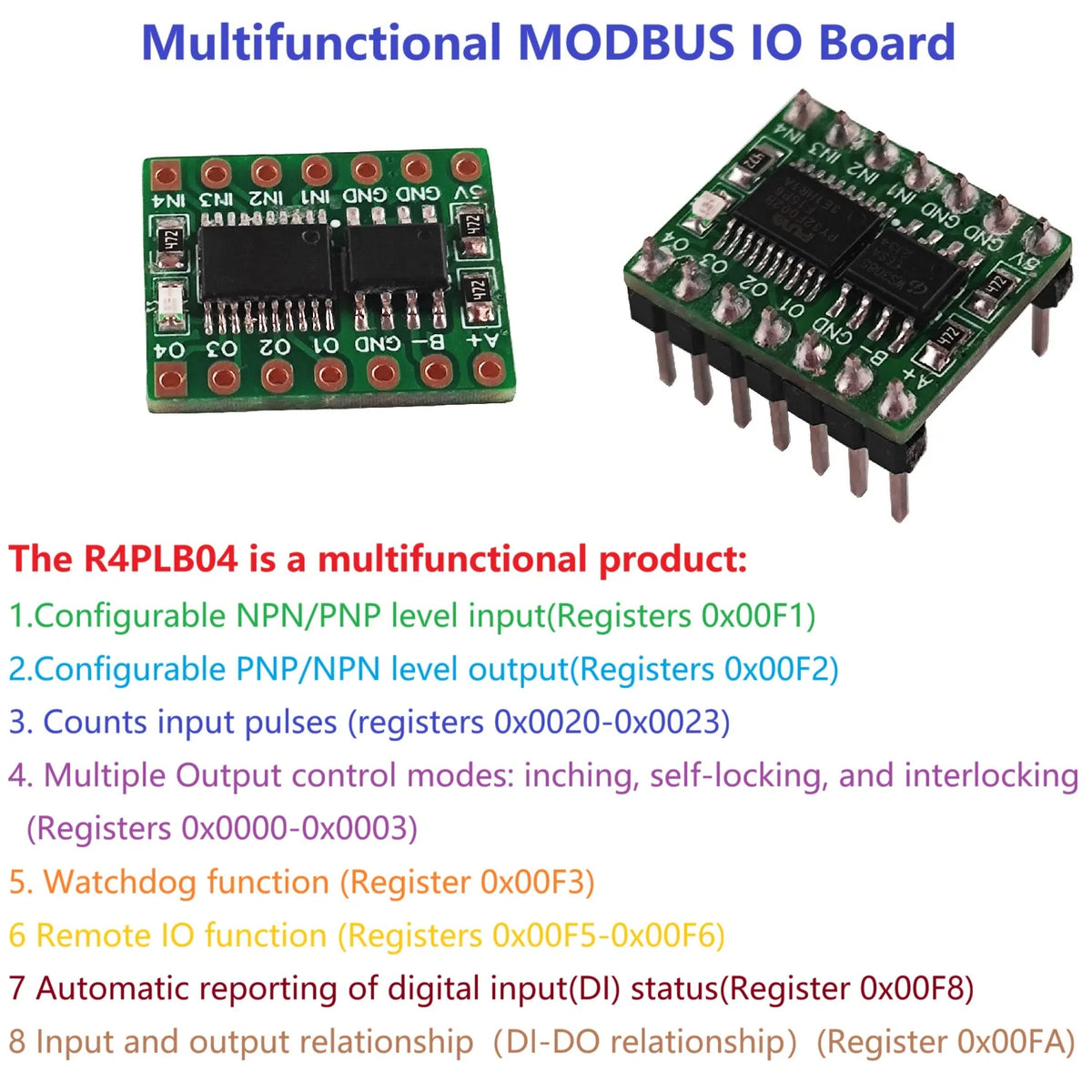

The R4PLB04 is a culmination of over ten years of development in RS485 I/O by eletechsup. Despite its small size, it boasts powerful functionality. In addition to basic RS485 I/O functions, it also features counting, watchdog timer, jogging, self-locking, and interlocking capabilities.

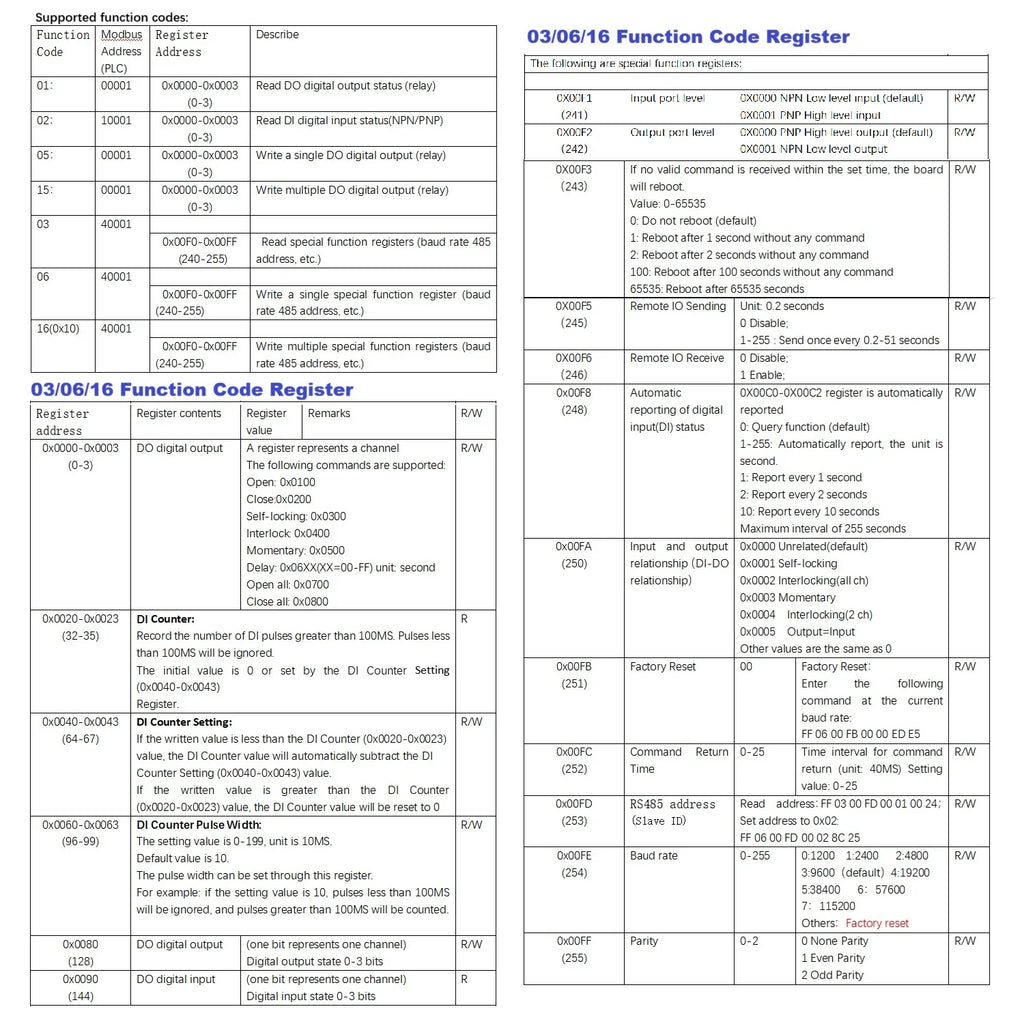

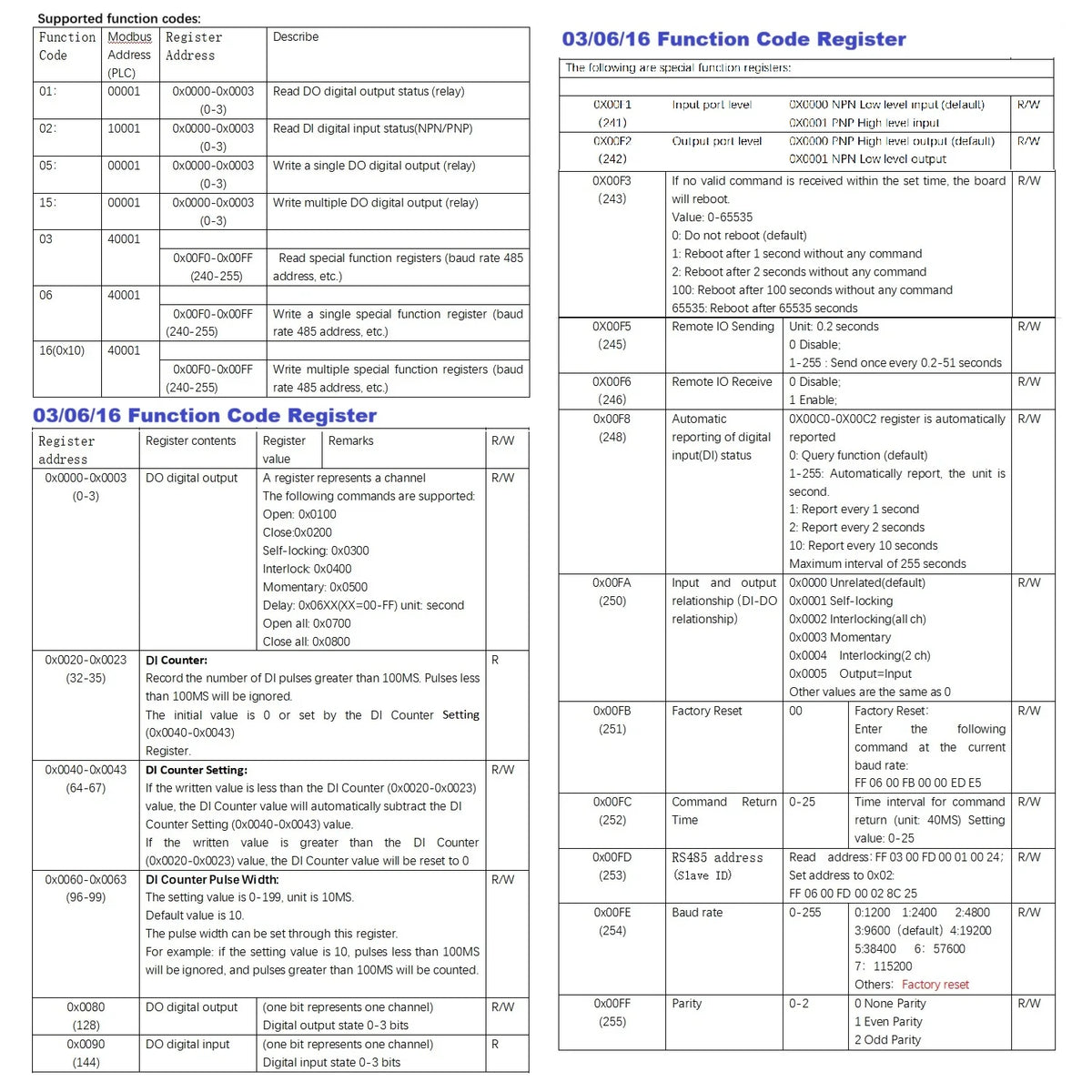

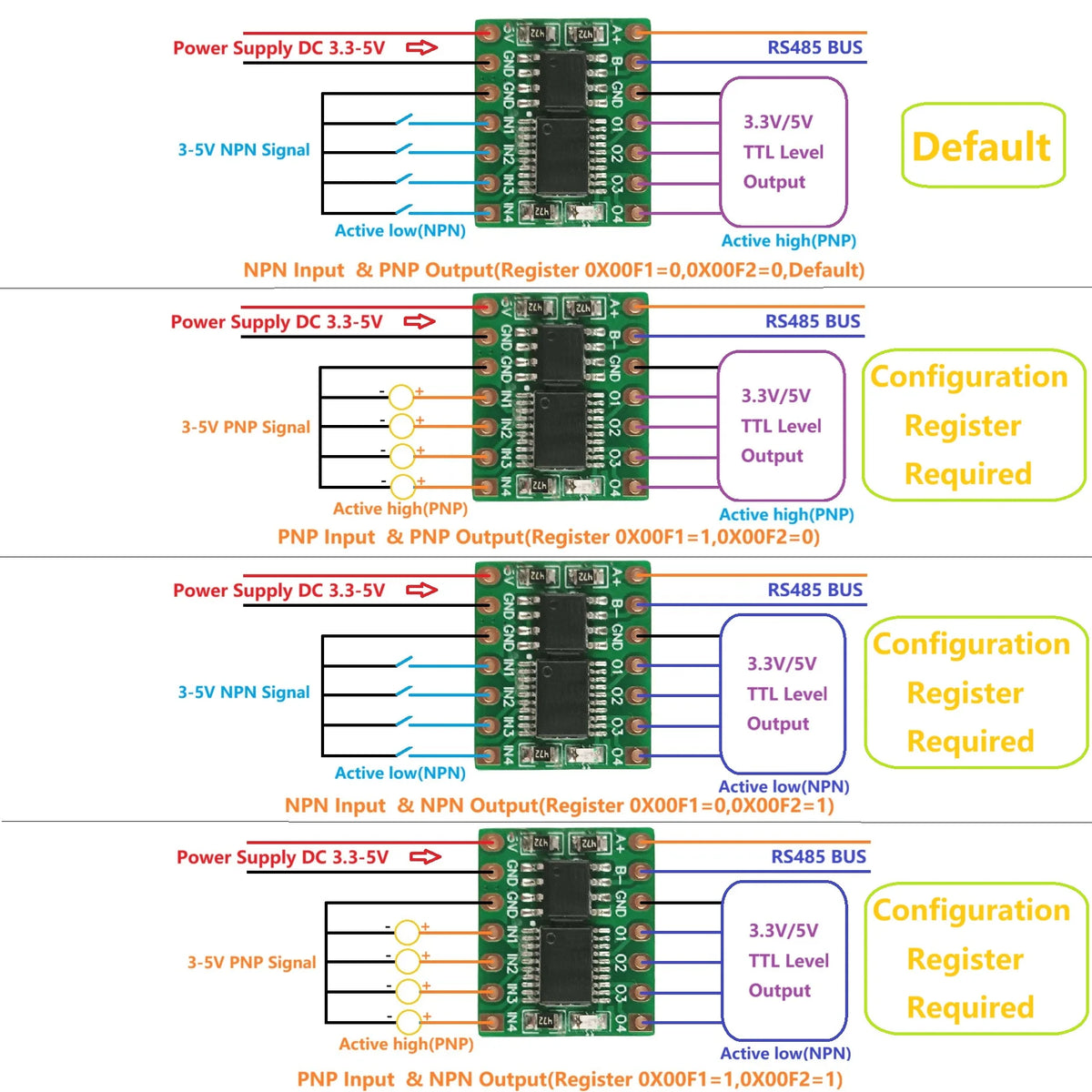

1. Configurable NPN/PNP level input(Registers 0x00F1)
2. Configurable PNP/NPN level output(Registers 0x00F2)
3. Counts input pulses (registers 0x0020-0x0023)
4. Multiple Output control modes: inching, self-locking, and interlocking
(Registers 0x0000-0x0003)
5. Watchdog function (Register 0x00F3)
6 Remote IO function (Registers 0x00F5-0x00F6)
7 Automatic reporting of digital input(DI) status(Register 0x00F8)
8 Input and output relationship(DI-DO relationship)(Register 0x00FA)

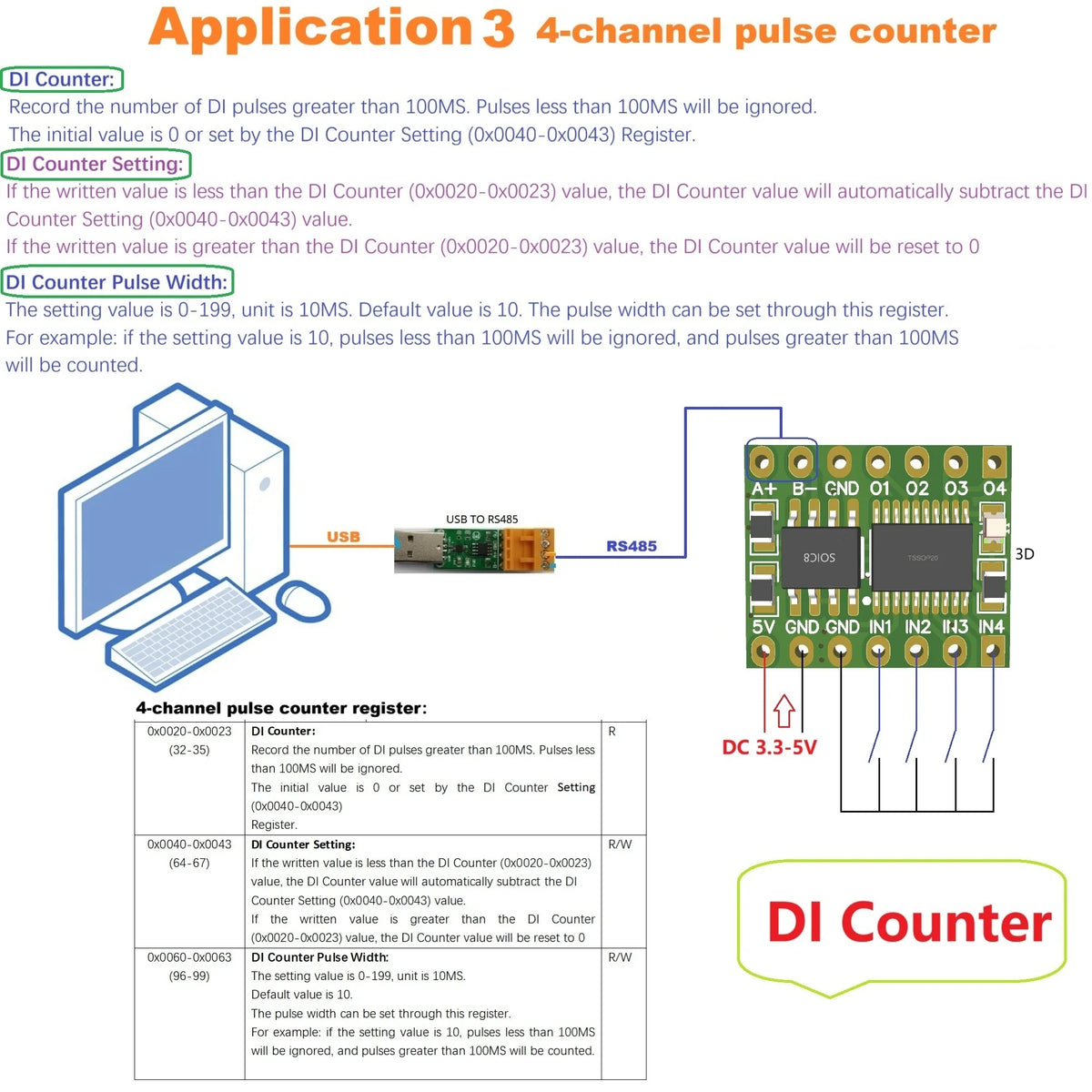

Input port pulse counting function:
DI Counter(registers 0x0020-0x0023):
Record the number of DI pulses greater than 100MS. Pulses less than 100MS will be ignored.
The initial value is 0 or set by the DI Counter Setting (0x0040-0x0043) Register.
DI Counter Setting(registers 0x0040-0x0043):
If the written value is less than the DI Counter (0x0020-0x0023) value, the DI Counter value will automatically subtract the DI Counter Setting (0x0040-0x0043) value.
If the written value is greater than the DI Counter (0x0020-0x0023) value, the DI Counter value will be reset to 0
DI Counter Pulse Width(registers 0x0060-0x0063):
The setting value is 0-199, unit is 10MS. Default value is 10. The pulse width can be set through this register.
For example: if the setting value is 10, pulses less than 100MS will be ignored, and pulses greater than 100MS will be counted.

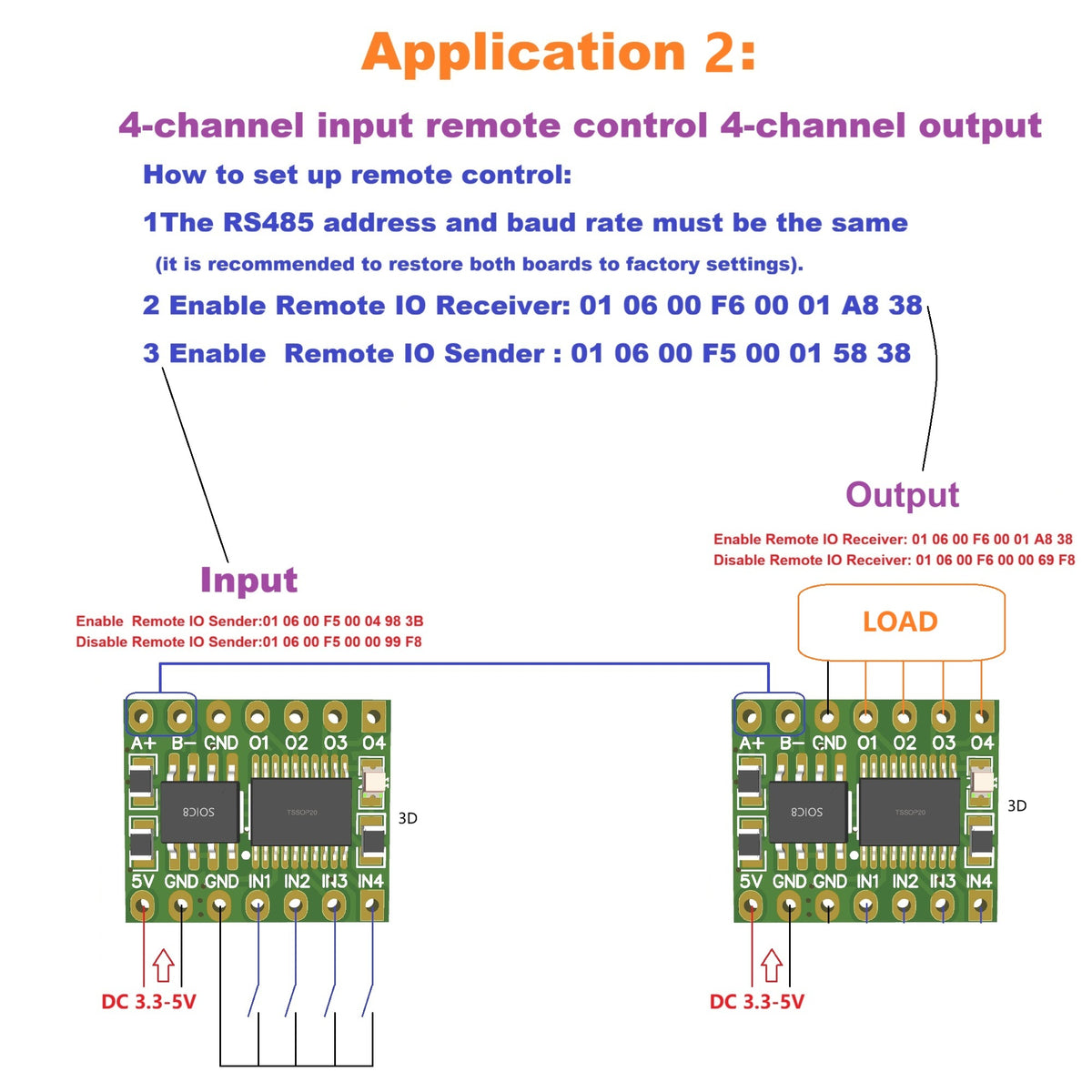

How to set up remote control:
1The RS485 address and baud rate must be the same (it is recommended to restore both boards to factory settings).
2 Enable Remote IO Receiver: 01 06 00 F6 00 01 A8 38
3 Enable Remote IO Sender : 01 06 00 F5 00 01 58 38
For more details, please download the instruction manual.
