8/16/24/32/48CH Multifunction RS485 Remote IO Module – NPN/PNP DI-DO Expansion Board with DIN Rail & Modbus RTU for PLC Industrial Automation

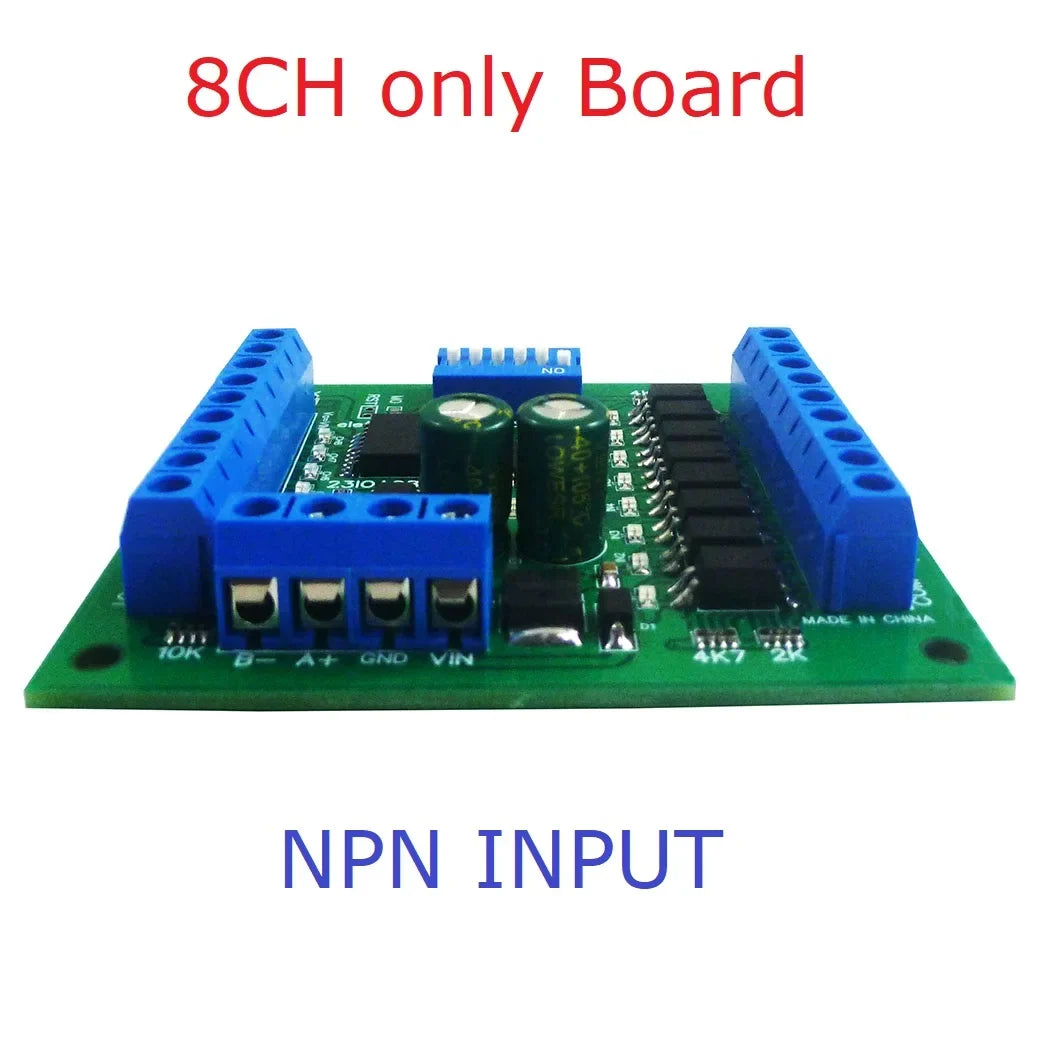

8CH NPN only Board
$11.52
Skip to product information
Description:
1. Working voltage: DC 6.5-30V (9V 12V 24V)
2. Working current: 8-50MA
3. 8/16/24/32/48 optically isolated input ports, NPN input, 8/32 channel version can choose PNP input
4. 8/16/24/32/48 Darlington transistor outputs (ULN2803 NPN output)
5. The default command has a variety of output modes: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
6. The input port can remotely control output port of another board via RS485 bus (relevant registers must be set)
7. MODBUS command 1 supports 03 06 16 function codes, MODBUS command 2 supports 01/02/03/05/06/15/16 function codes
8. The maximum delay of 1 MODBUS command is 255 seconds

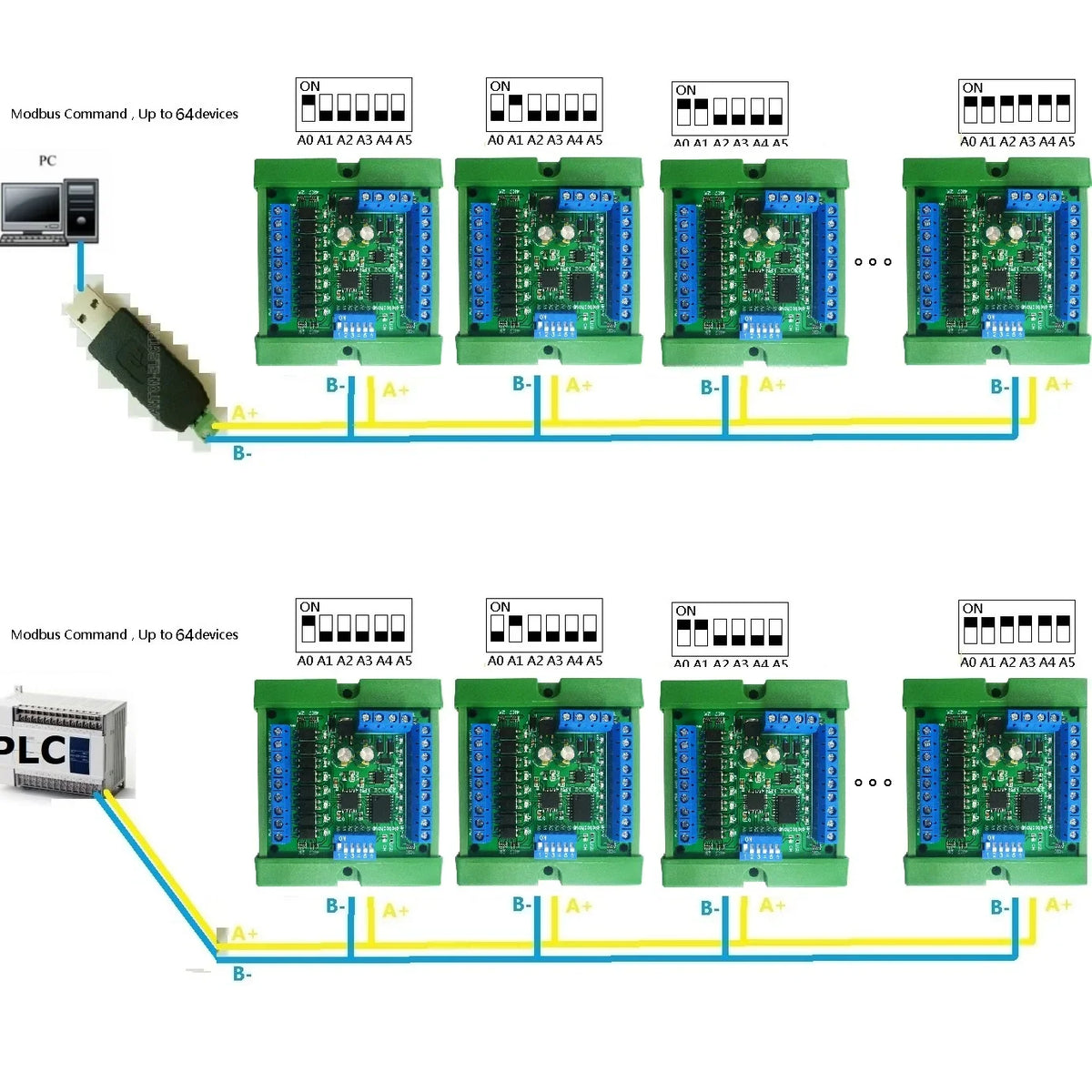

9. In MODBUS command mode, up to 64 devices can be used in parallel
10. The default baud rate is 9600BPS, you can choose the baud rate by jumper: 1200/2400/4800/19200/38400/57600/115200BPS

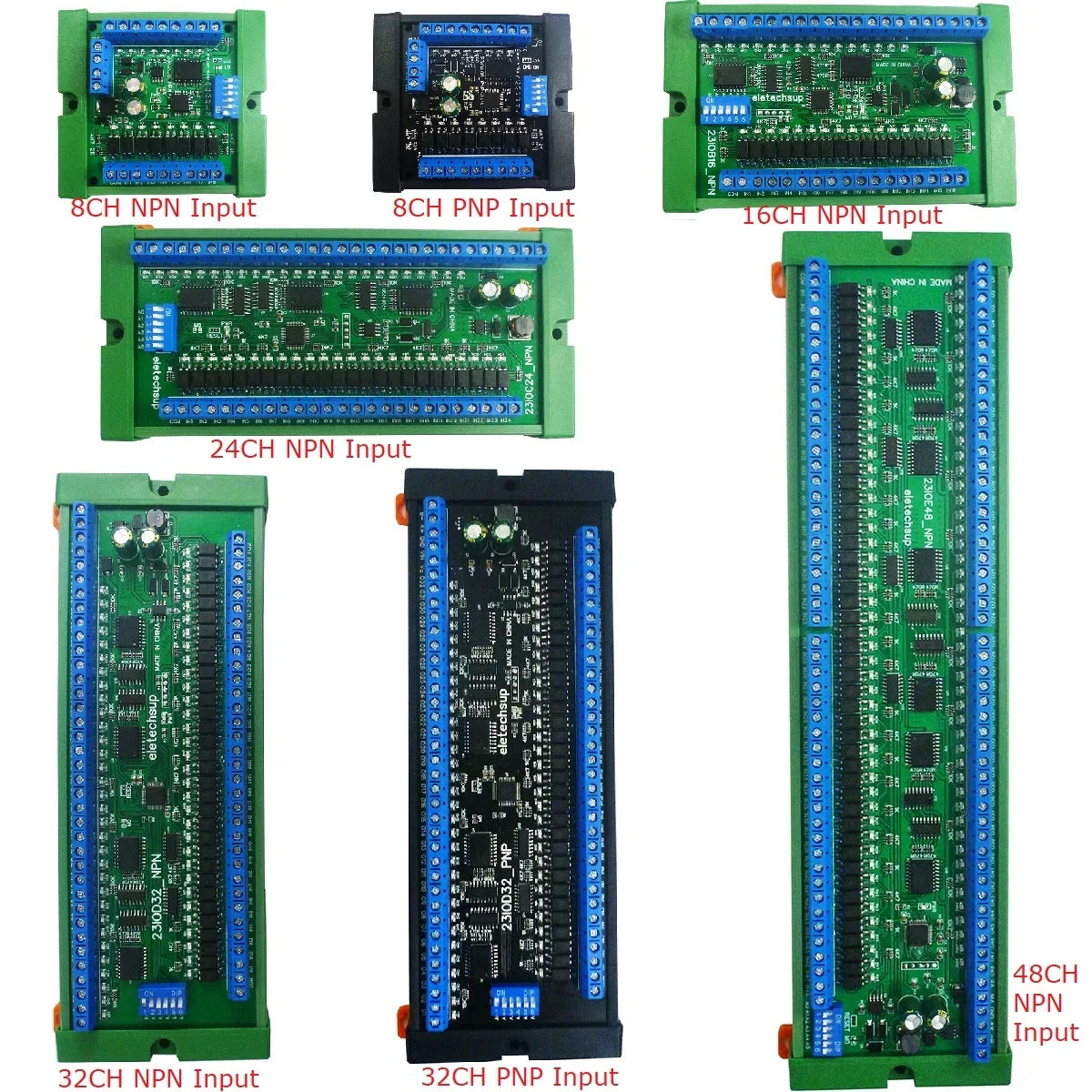

11. Sizes (with box): 85x80x30mm(8CH),130x80x30mm(16CH),173x80x30mm(24CH),215x80x30mm(32CH),293x80x30mm(48CH)
12. Weight (with box): 97g (8CH), 148g (16CH), 197g (24CH), 246g (32CH), 339g (48CH)
13. Maximum load: the maximum load current of each channel is 300MA
For more information, please contact me
PLC IO expansion board
RS485 Remote Control
Smart Home,Home Automation ,Wiser Home;
PTZ
IP Camera
Security Monitoring
Identification system;
LED Lamp Drivers
Automatic curtain control

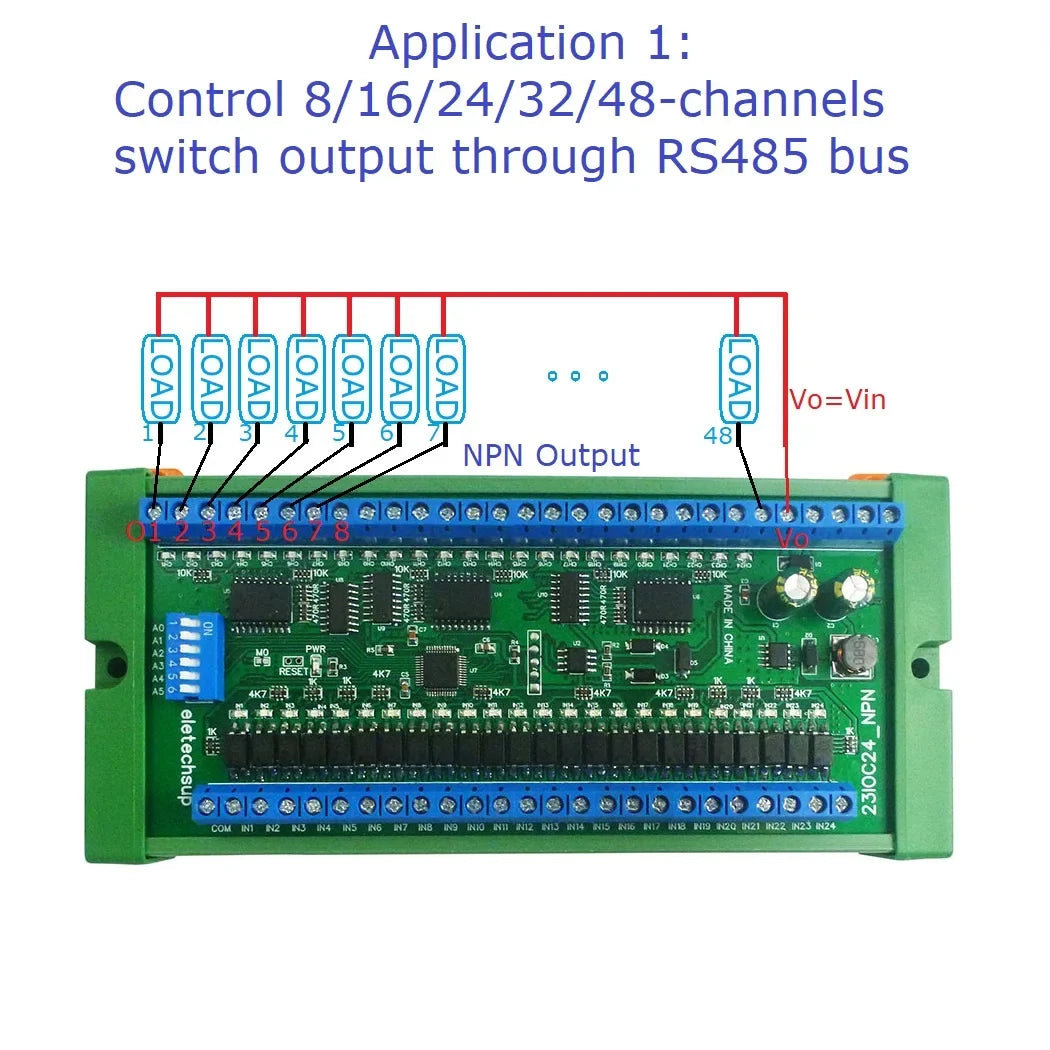

Application 1: Control 8/16/24/32/48 channel switch output through RS485 bus

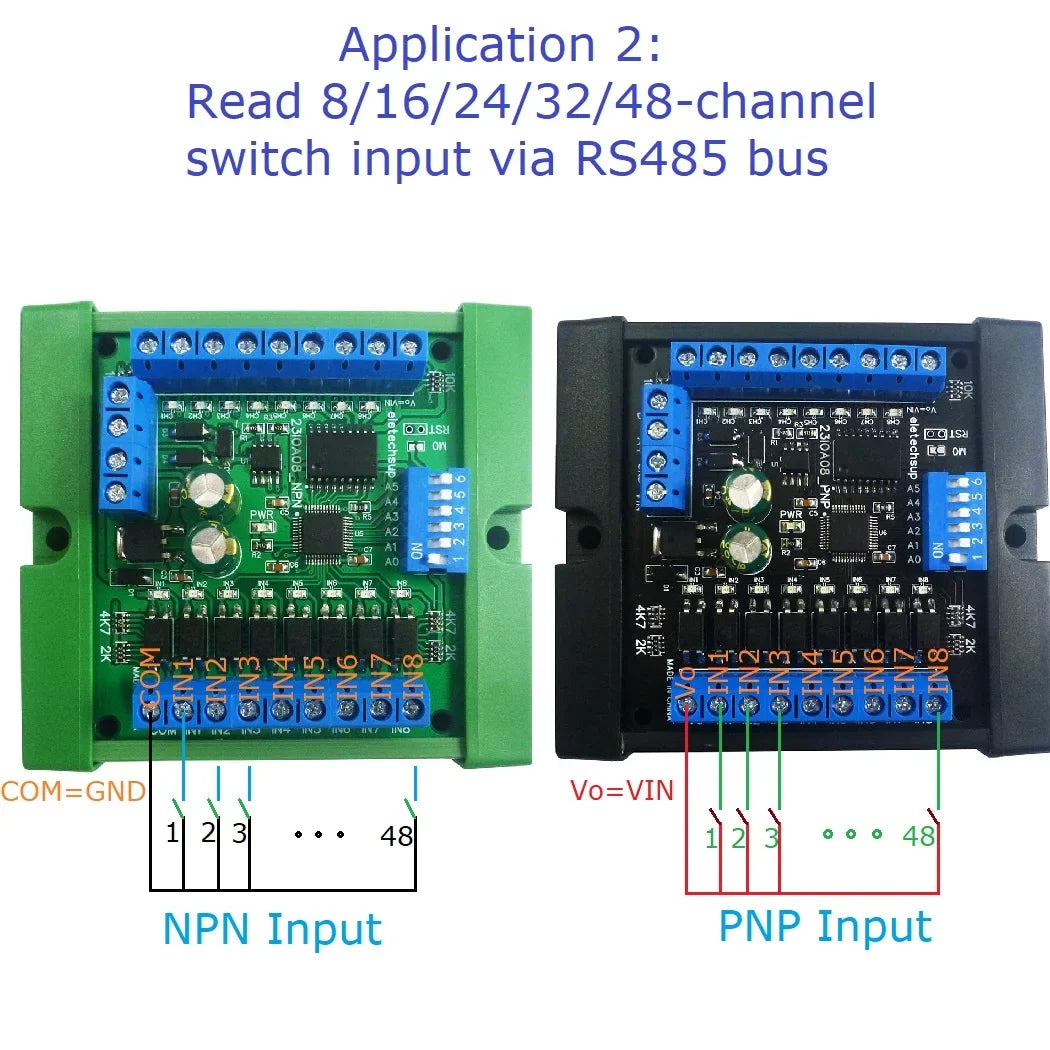

Application 2: Read 8/16/24/32/48 channel switch input via RS485 bus

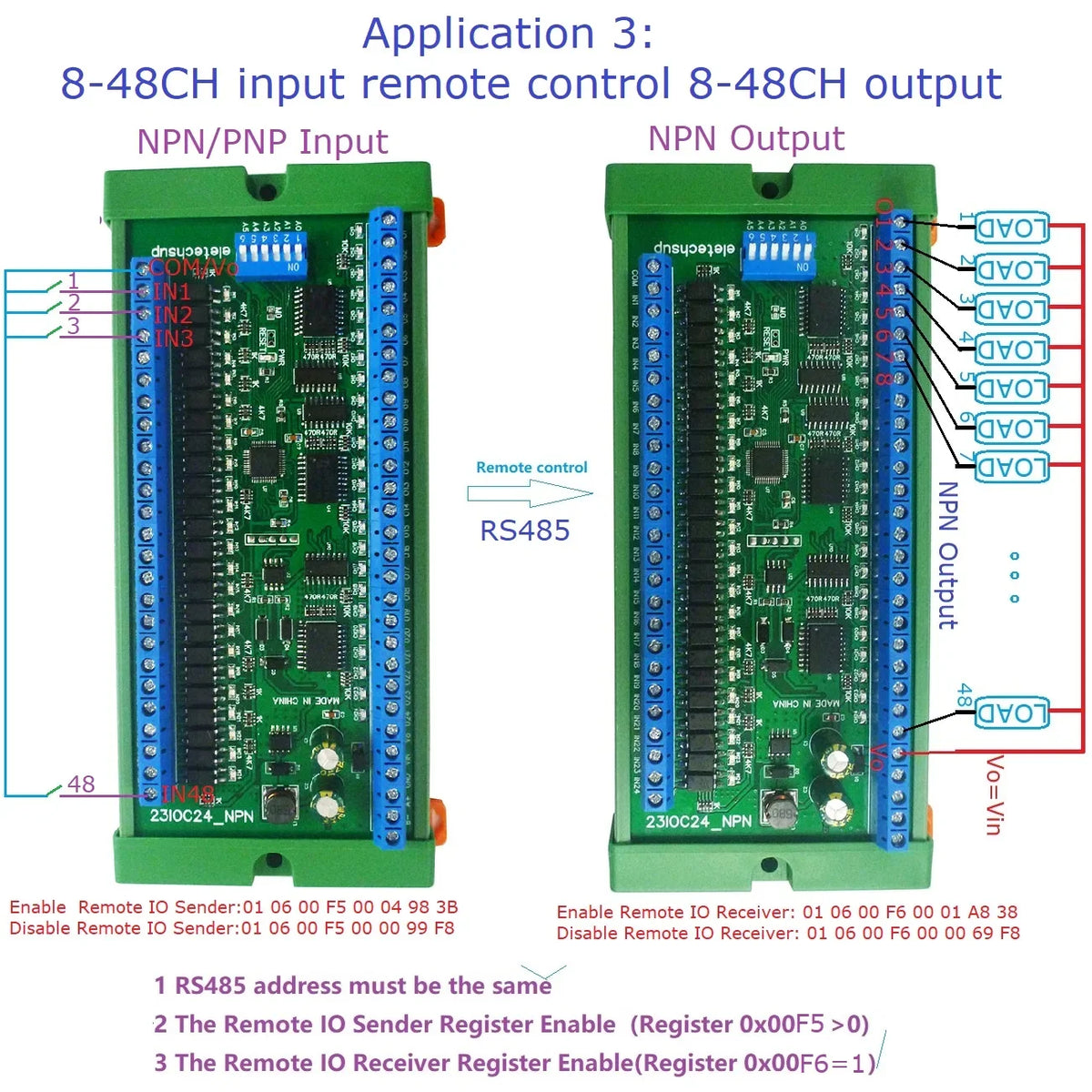

Application 3: 8/16/24/32/48 channel input remote control 8/16/24/32/48 channel output
8/16/24/32/48CH Multifunction RS485 Remote IO Module – NPN/PNP DI-DO Expansion Board with DIN Rail & Modbus RTU for PLC Industrial Automation
$11.52
Product Name: 8 16 24 32 48CH Multifunction RS485 Remote IO Module PLC DI-DO expansion Board DIN Rail Box Standard MODBUS RTU Protocol
Package inlcuded:
1 PCS DC 9V 12V 24V 8/16/24/32/48CH Input & 8/16/24/32/48CH Output RS485 IO Module
Description:
1. Working voltage: DC 6.5-30V (9V 12V 24V)
2. Working current: 8-50MA
3. 8/16/24/32/48 optically isolated input ports, NPN input, 8/32 channel version can choose PNP input
4. 8/16/24/32/48 Darlington transistor outputs (ULN2803 NPN output)
5. The default command has a variety of output modes: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
6. The input port can remotely control output port of another board via RS485 bus (relevant registers must be set)
7. MODBUS command 1 supports 03 06 16 function codes, MODBUS command 2 supports 01/02/03/05/06/15/16 function codes
8. The maximum delay of 1 MODBUS command is 255 seconds
9. In MODBUS command mode, up to 64 devices can be used in parallel
10. The default baud rate is 9600BPS, you can choose the baud rate by jumper: 1200/2400/4800/19200/38400/57600/115200BPS
11. Sizes (with box): 85x80x30mm(8CH),130x80x30mm(16CH),173x80x30mm(24CH),215x80x30mm(32CH),293x80x30mm(48CH)
12. Weight (with box): 97g (8CH), 148g (16CH), 197g (24CH), 246g (32CH), 339g (48CH)
13. Maximum load: the maximum load current of each channel is 300MA
For more information, please contact me
Application

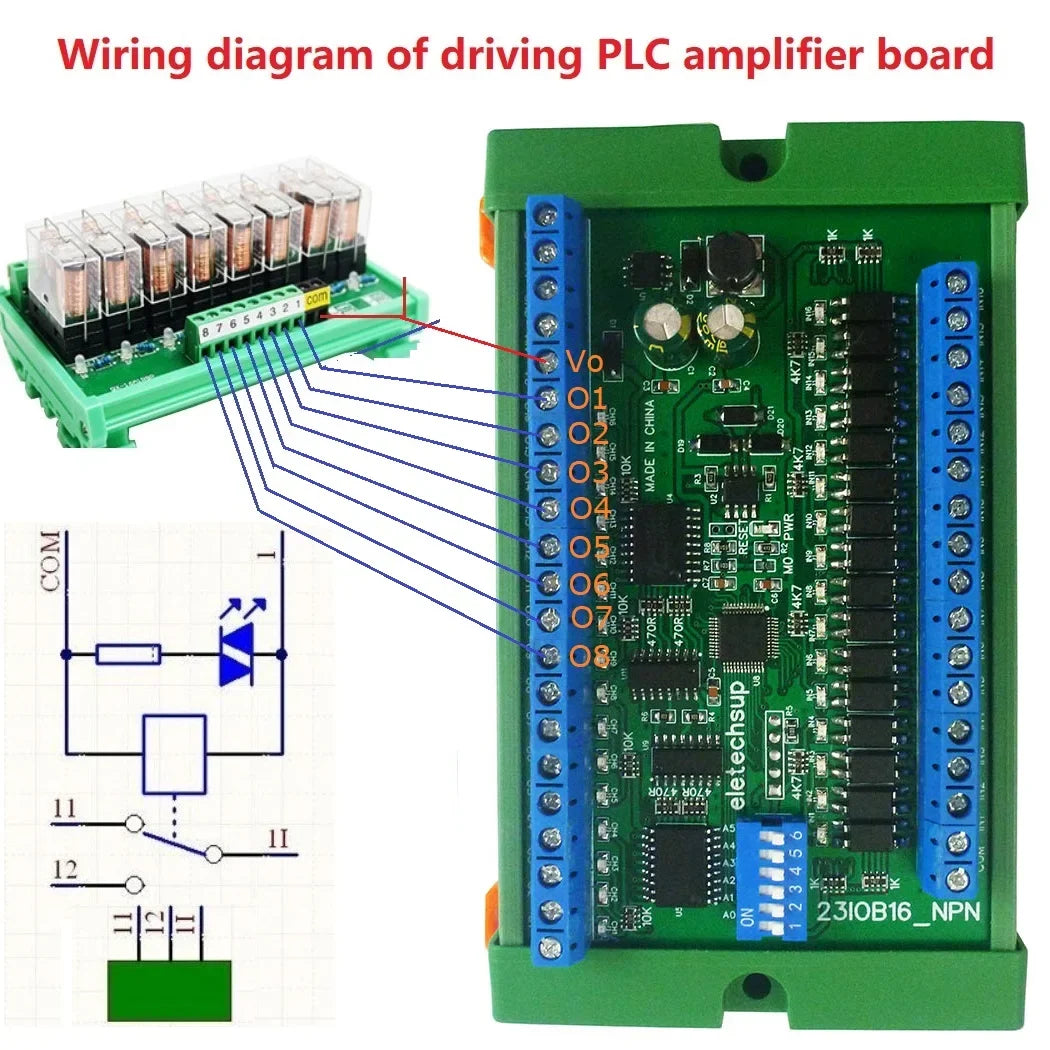

PLC IO expansion board
RS485 Remote Control
Smart Home,Home Automation ,Wiser Home;
PTZ
IP Camera
Security Monitoring
Identification system;
LED Lamp Drivers
Automatic curtain control
Application 1: Control 8/16/24/32/48 channel switch output through RS485 bus
Application 2: Read 8/16/24/32/48 channel switch input via RS485 bus
Application 3: 8/16/24/32/48 channel input remote control 8/16/24/32/48 channel output
