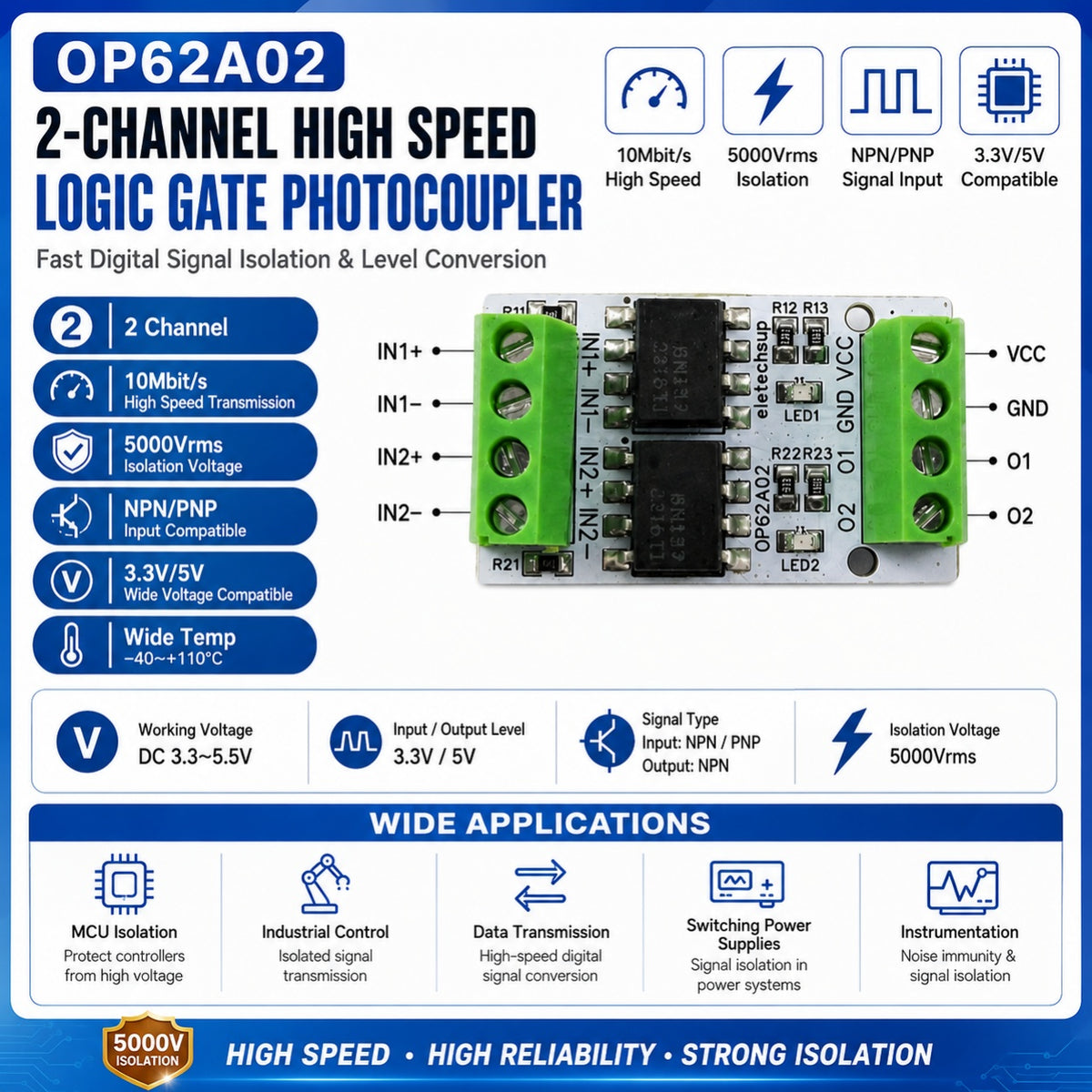

Features

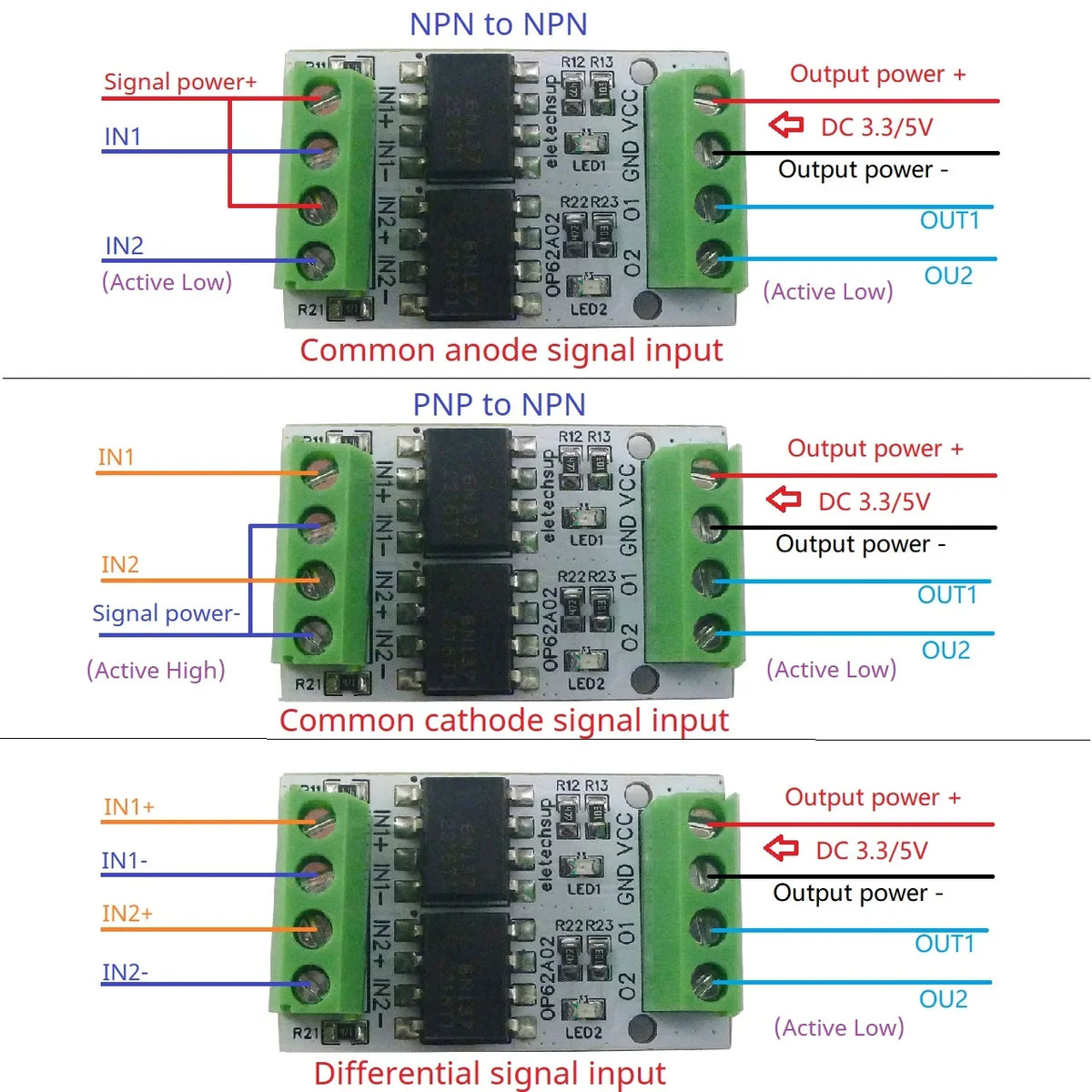

This is a 2-channel high-speed photoelectric isolation module with a maximum transmission rate of up to 10MBit/s and input and output isolation of 5000Vrms. There are four wiring methods, non-inverting input, inverting input, differential in-phase input, and differential inverting input. Can be used in most 3.3V 5V level isolation situations.

Working voltage: DC 3.3-5.5V
Input level : 3.3-5V
Output level: 3.3-5V
Input drive current: 3.3V/4MA; 5V/7MA
Output load current: 3.3V/5MA; 5V/8MA
Input signal type: NPN/PNP
Output signal type: NPN
Isolation voltage: 5000V
Signal frequency: <10Mhz
Product model: OP62A02
Brand name: eletechsup
Working temperature: -40~+110 Degrees Celsius
Conversion type: NPN to NPN; PNP to NPN

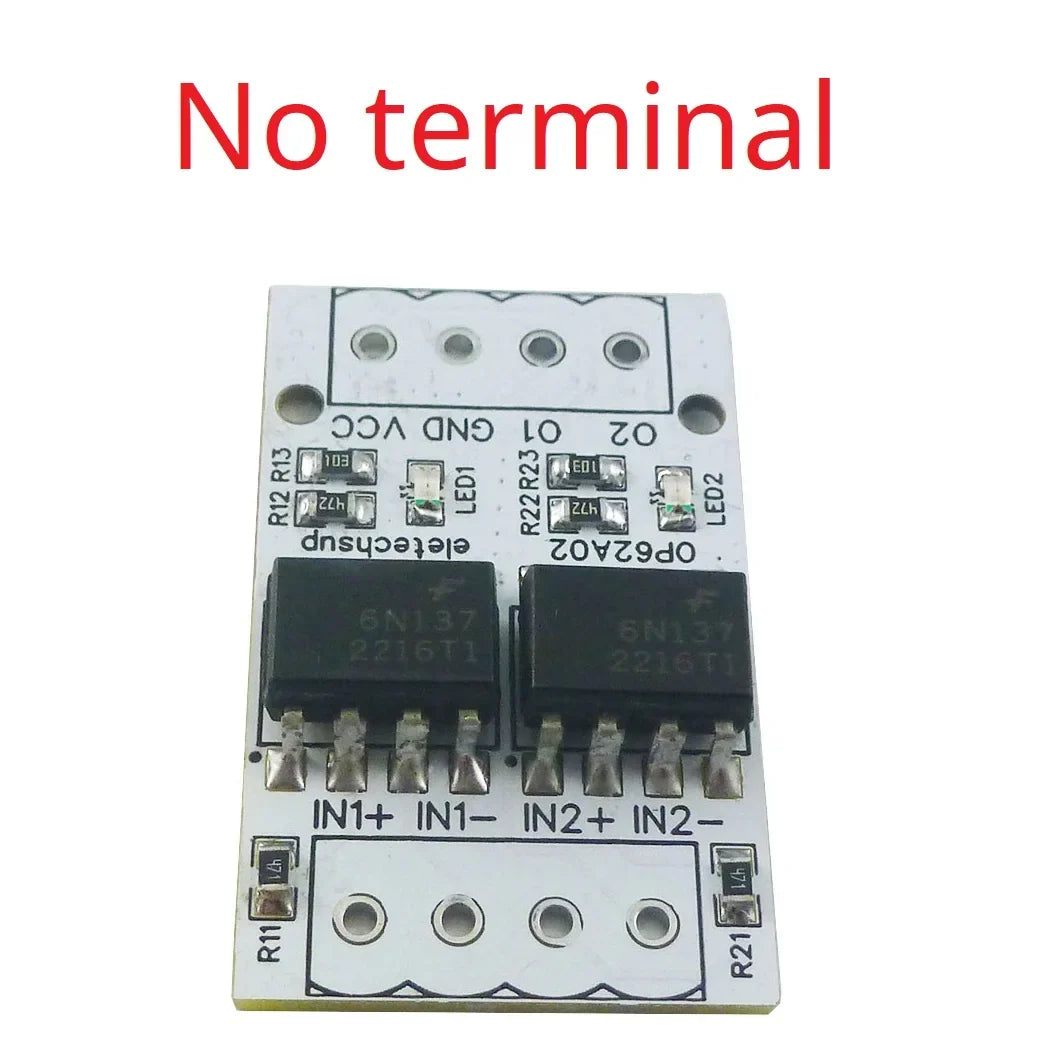

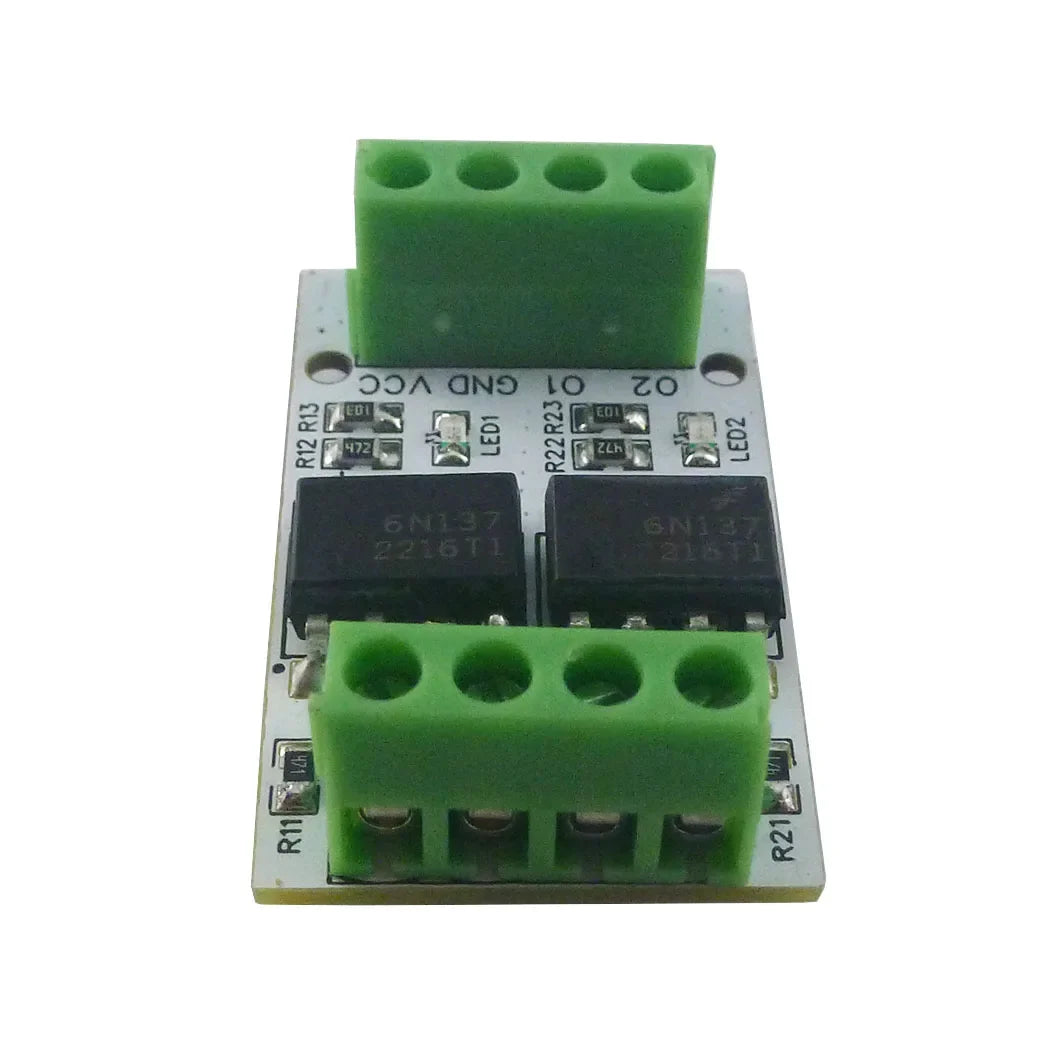

Size: 35.5*22*5.7MM(No terminal),35.5*22*12MM(With terminal)
Weight: 3.1grams(No terminal),6.5grams(With terminal)


Application:
3.3V LvTTL 5V TTL Convert each other
for Arduiuo MEGA2560 ESP32 ESP8266 etc.
Line receiver,data transmission
Data multiplexing
Switching power supplies
Pulse transformer replacement

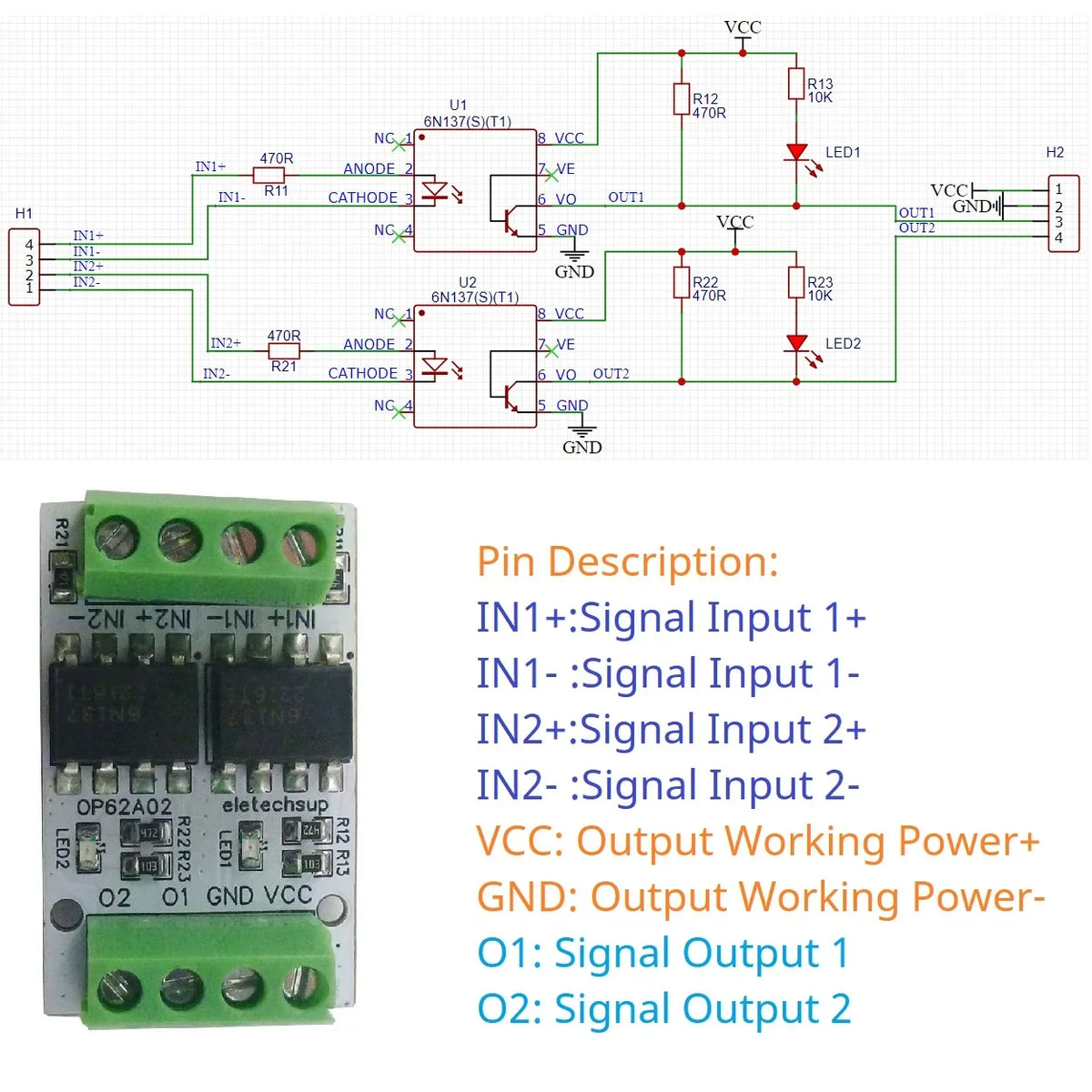

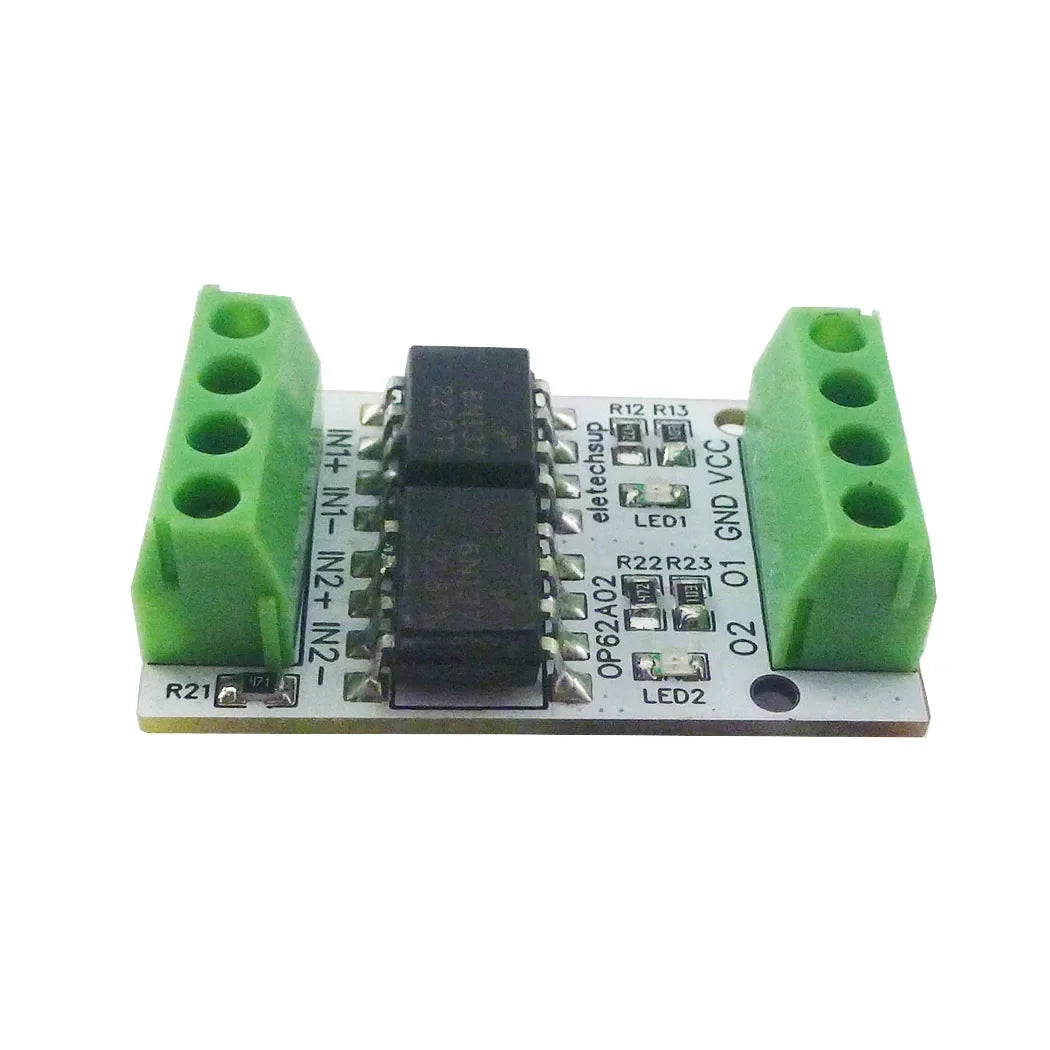

Pin Description:
IN1+:Signal Input 1+
IN1- :Signal Input 1-
IN2+:Signal Input 2+
IN2- :Signal Input 2-
VCC: Output Working Power+（DC 3-5.5V）
GND: Output Working Power-
O1: Signal Output 1
O2: Signal Output 2

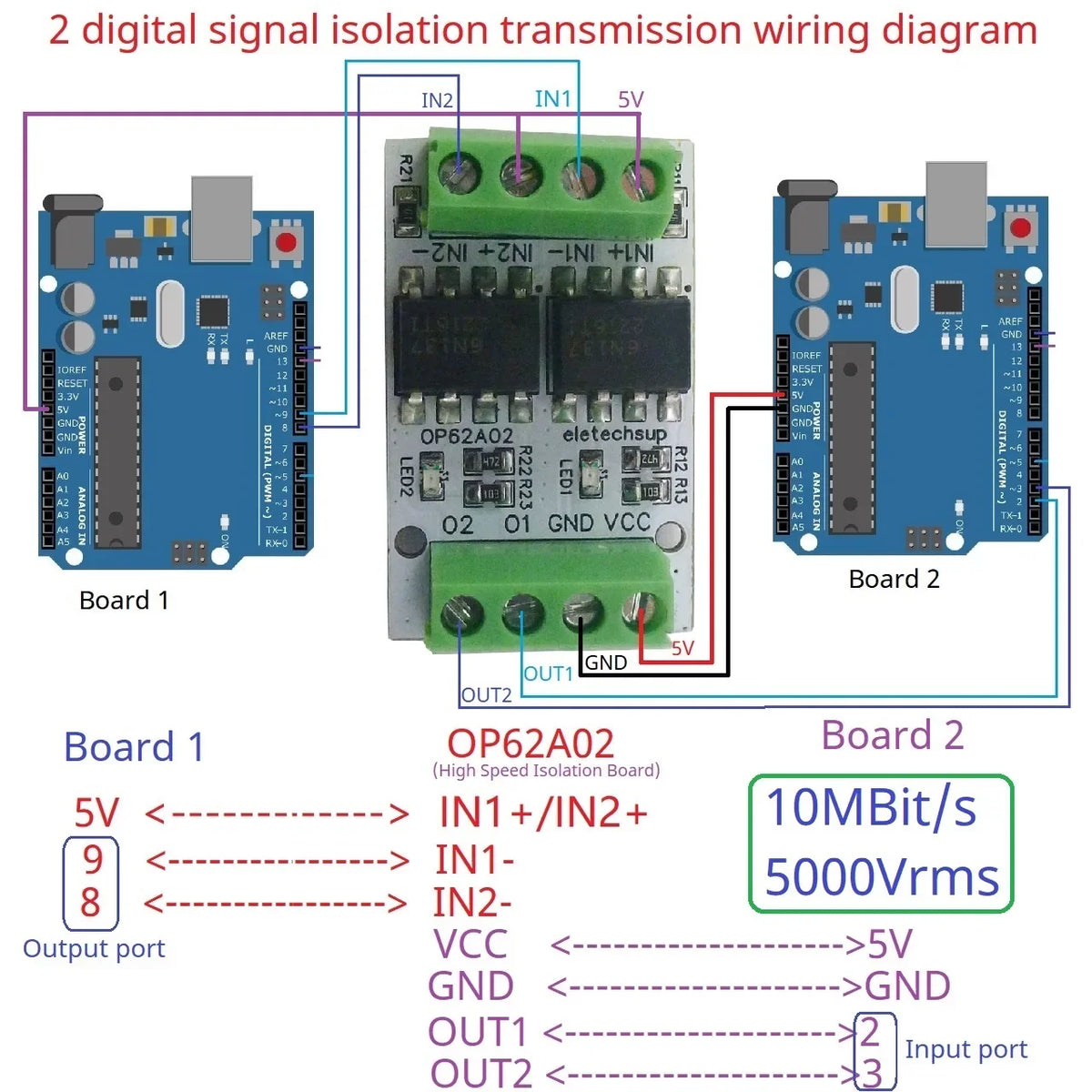

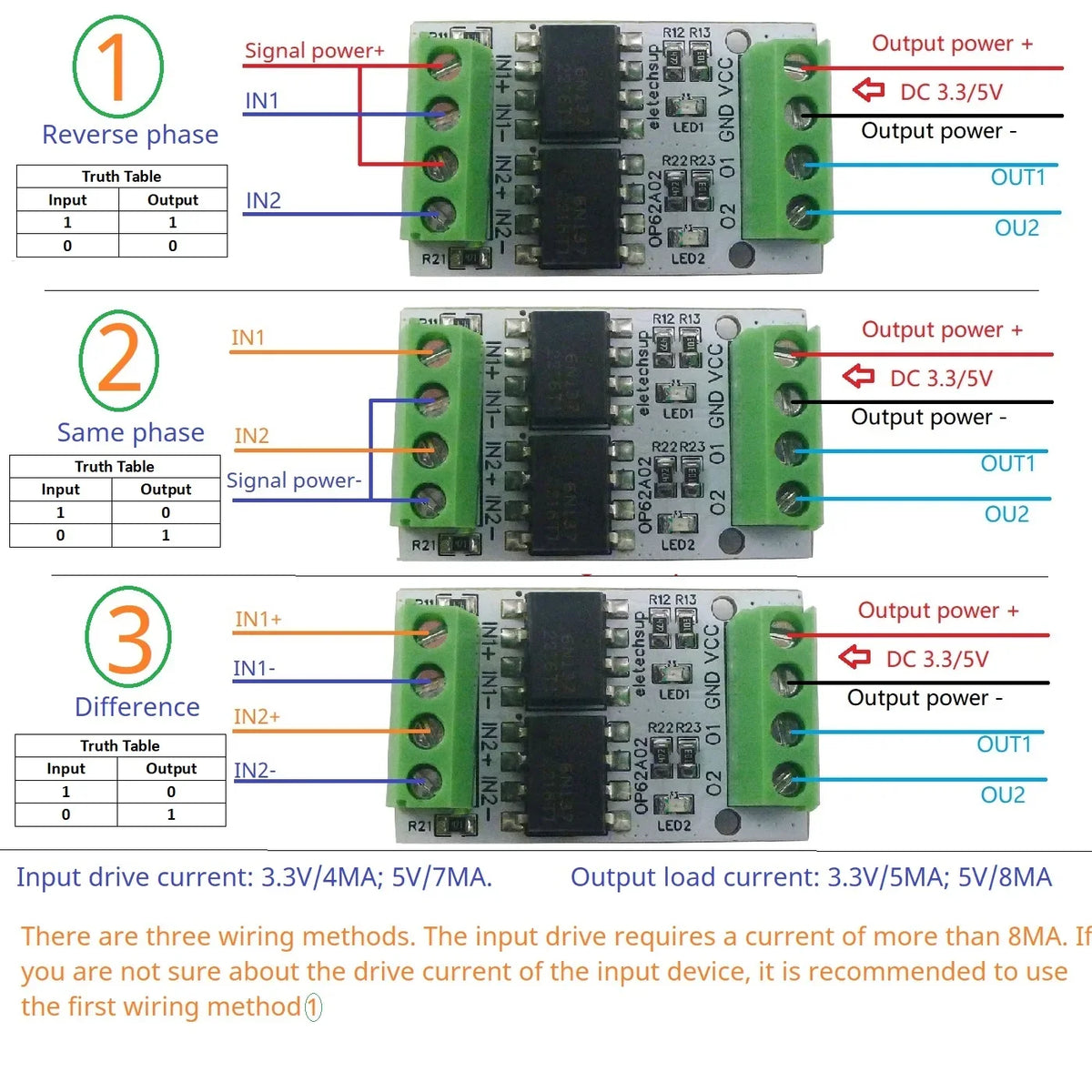

There are three wiring methods. The input drive requires a current of more than 8MA. If you are not sure about the drive current of the input device, it is recommended to use the first wiring method.
