30W 10-90V Buck Converter – Adjustable 5V/12V/24V for EV E-Bike UPS

ND9024TA DC 10V-90V to 24V 12V 5V 2.5A Buck Module High Voltage Regulator for Electric Vehicle Battery Solar System Power Supply Converter

$5.45

Version Out 5V No terminal Out 12V No terminal Out 24V No terminal Out 5V With terminal Out12V With terminal Out24V With terminal

ND9024TA is Eletechsup high performance high voltage buck module, up to 90V input, optional 5V/12V/24V output.

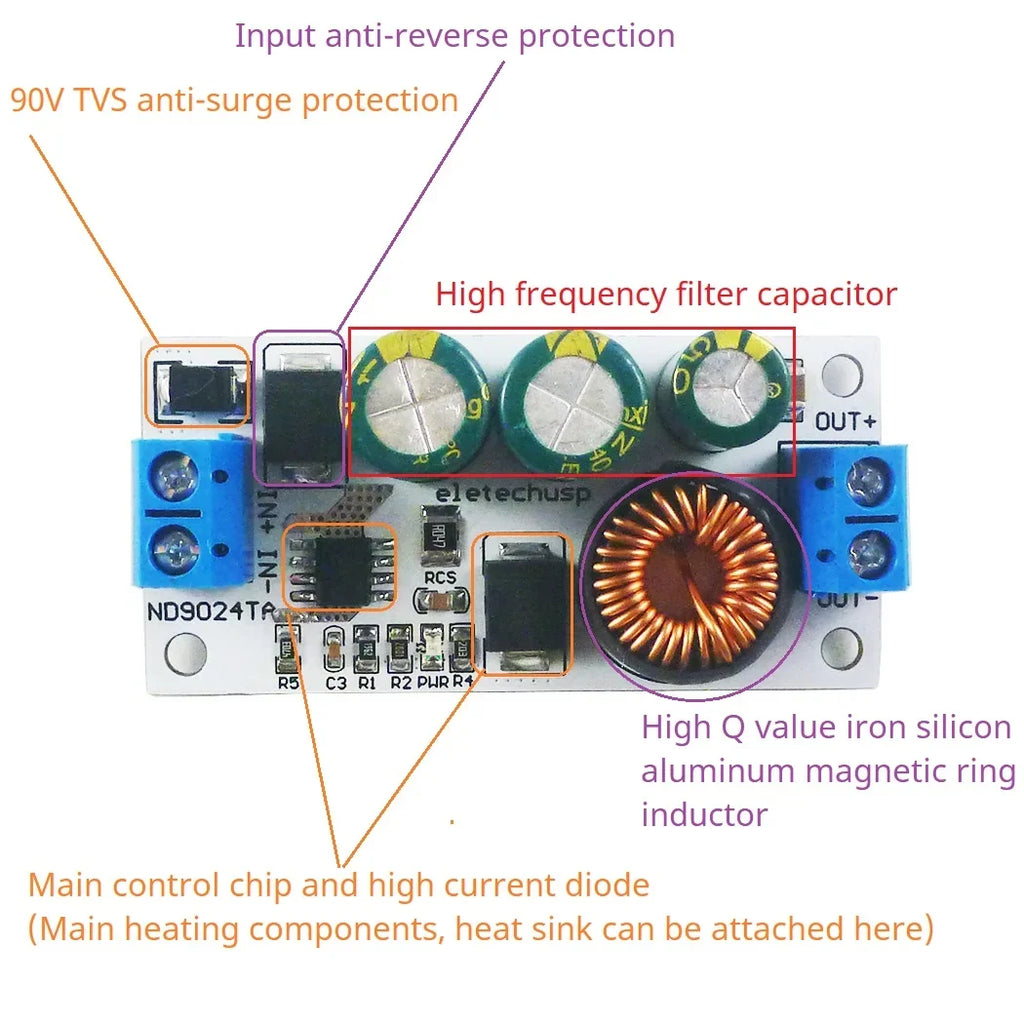

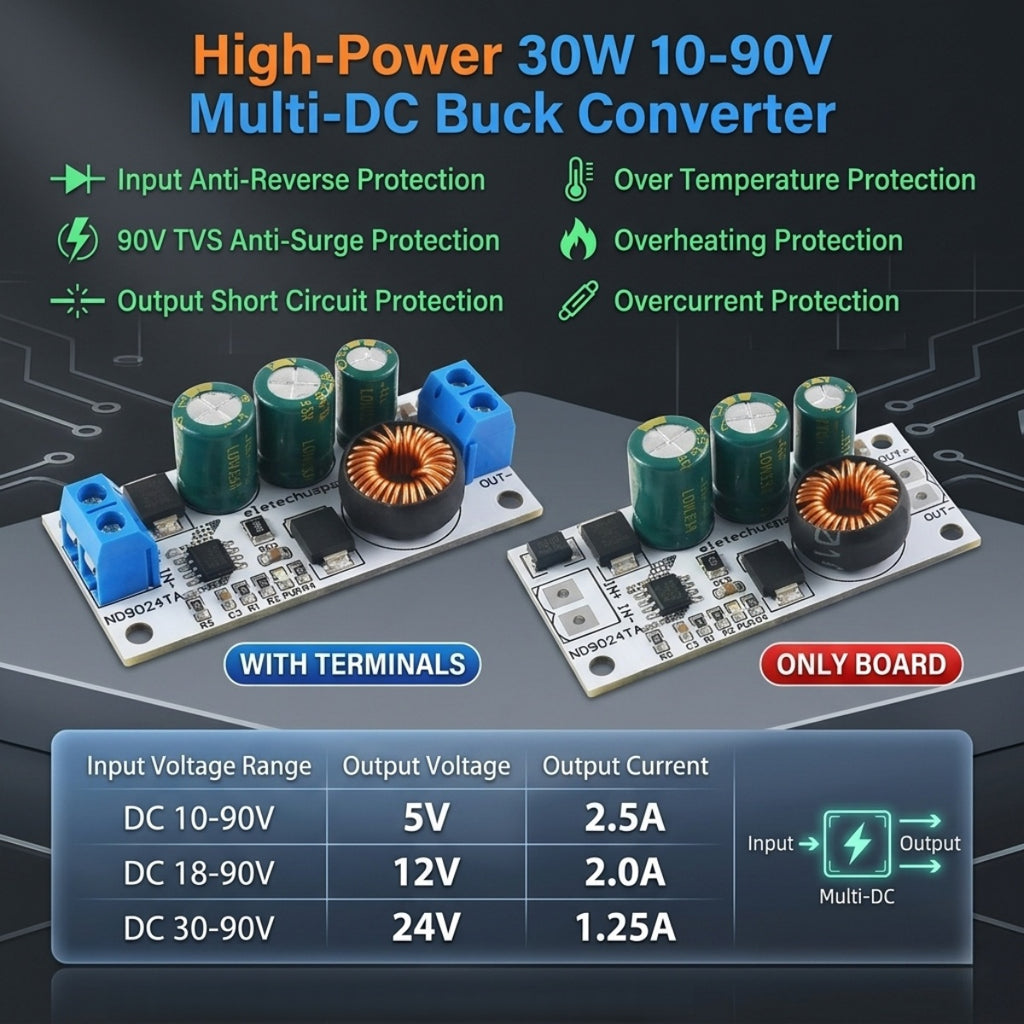

Multiple protections to ensure the safety of electricity use
Input anti-reverse protection
90V TVS anti-surge protection
Output short circuit protection
Over temperature protection
Overheating protection
Overcurrent protection

The maximum 30W output refers to the power when 24V outputs 1.25A

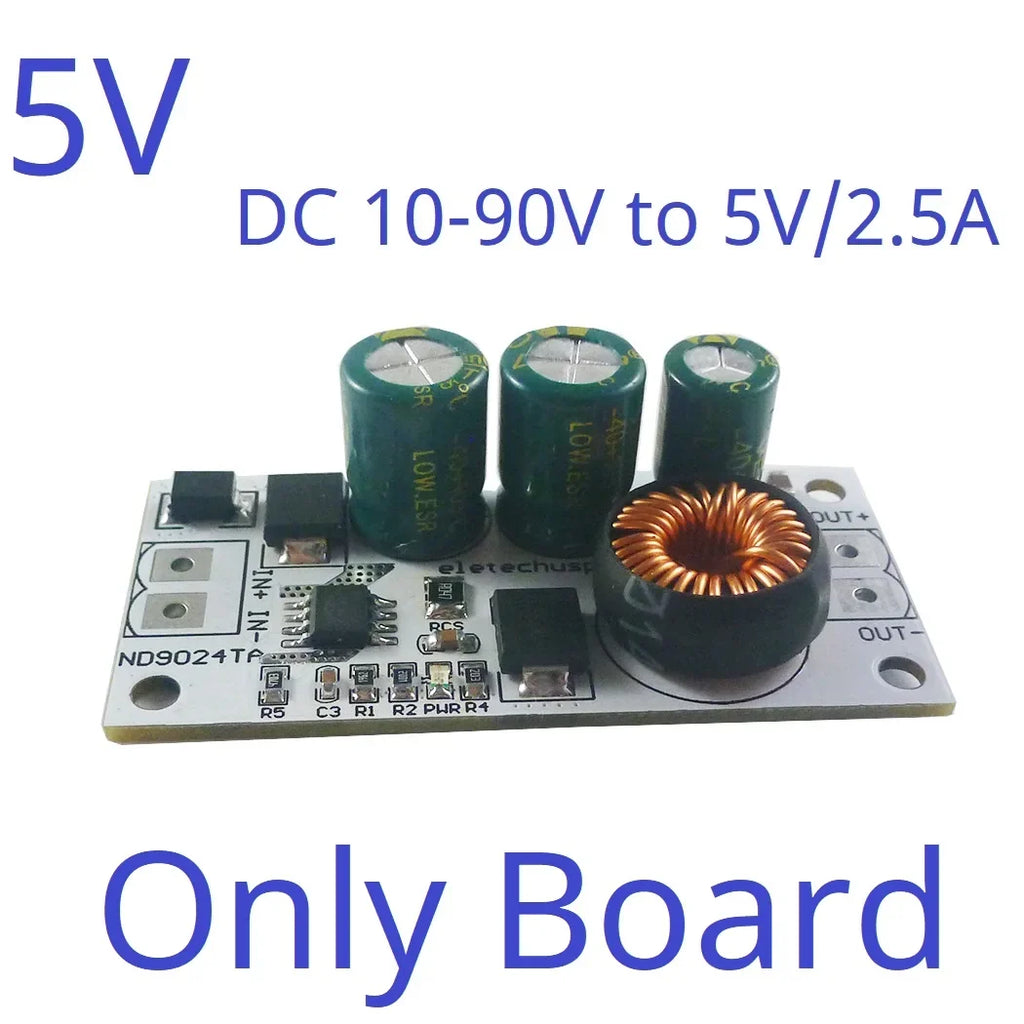

5V :

Input voltage 10~90V,output 5V
Maximum output current 2.5A
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.3mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g

12V :

Input voltage 18~90V,output 12V
Maximum output current 2A
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.4mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g

24V :

Input voltage 30~90V,output 24V
Maximum output current 1.25A(30W)
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.4mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g

Attention :

This is a high voltage DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
4 When the input voltage is greater than 30V, please connect the wires first and then power on.

Applications:

Electric bicycle EBike motorcycle

DC 90V 72V 64V 60V 48V 36V 24V

CCTV PTZ camera

RS485 Modbus equipment

Motor Toy
Wifi Router

Network equipment

Multimeter instrumentation

Electric toys

Smart home / home automation

Lion Lipo LiFePO4 Lead-acid Solar battery

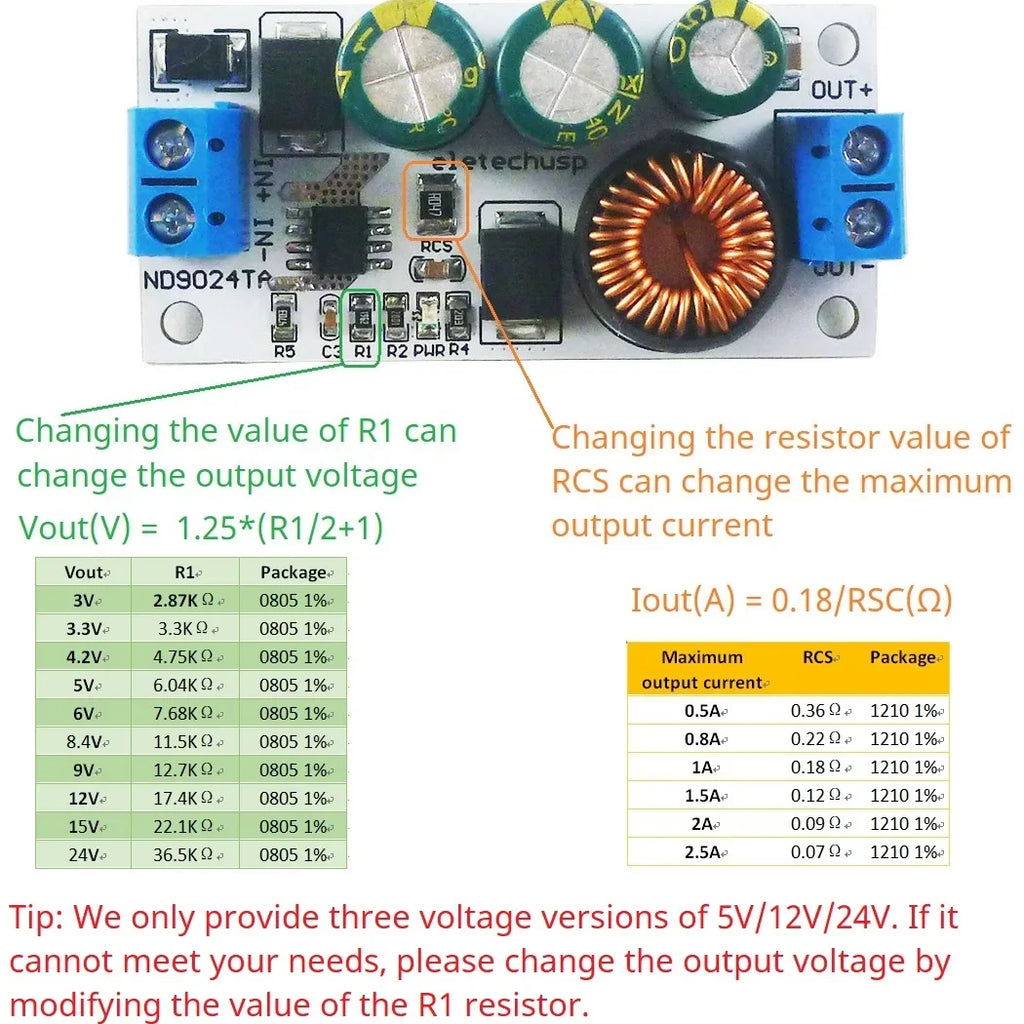

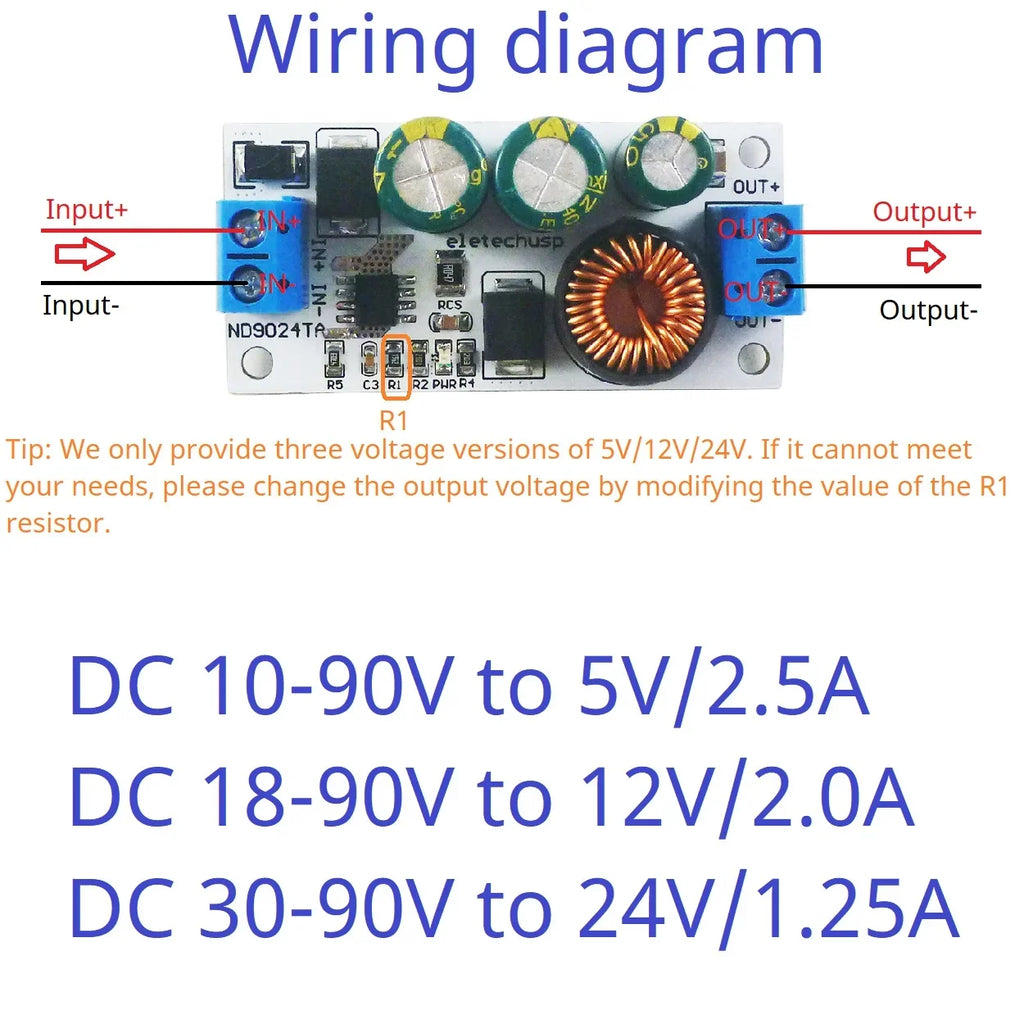

Tip: We only provide three voltage versions of 5V/12V/24V. If it cannot meet your needs, please change the output voltage by modifying the value of the R1 resistor.
