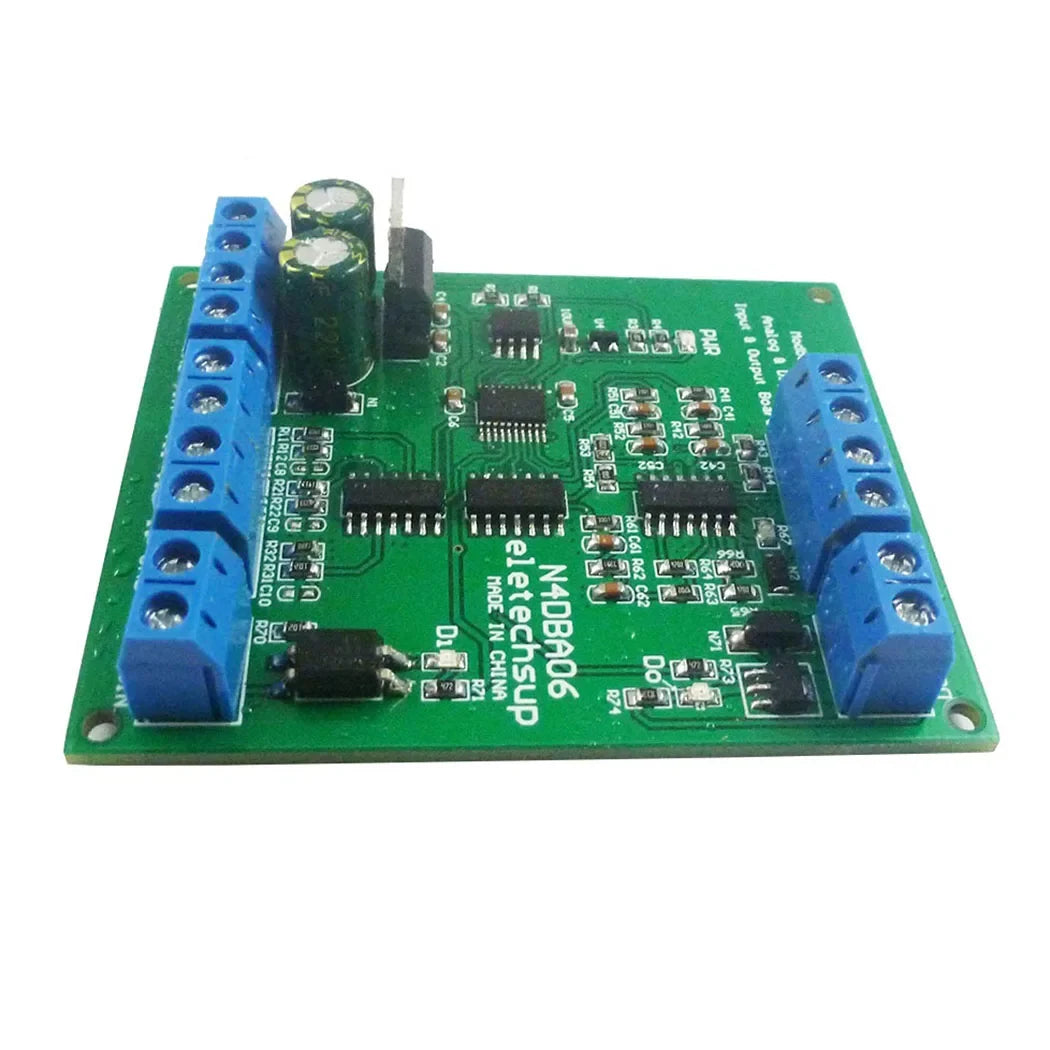

N4DBA06 8CH Signal Generator & Detector – 4-20mA/0-10V ADC DAC Converter with RS485 Modbus RTU IO Module for PLC

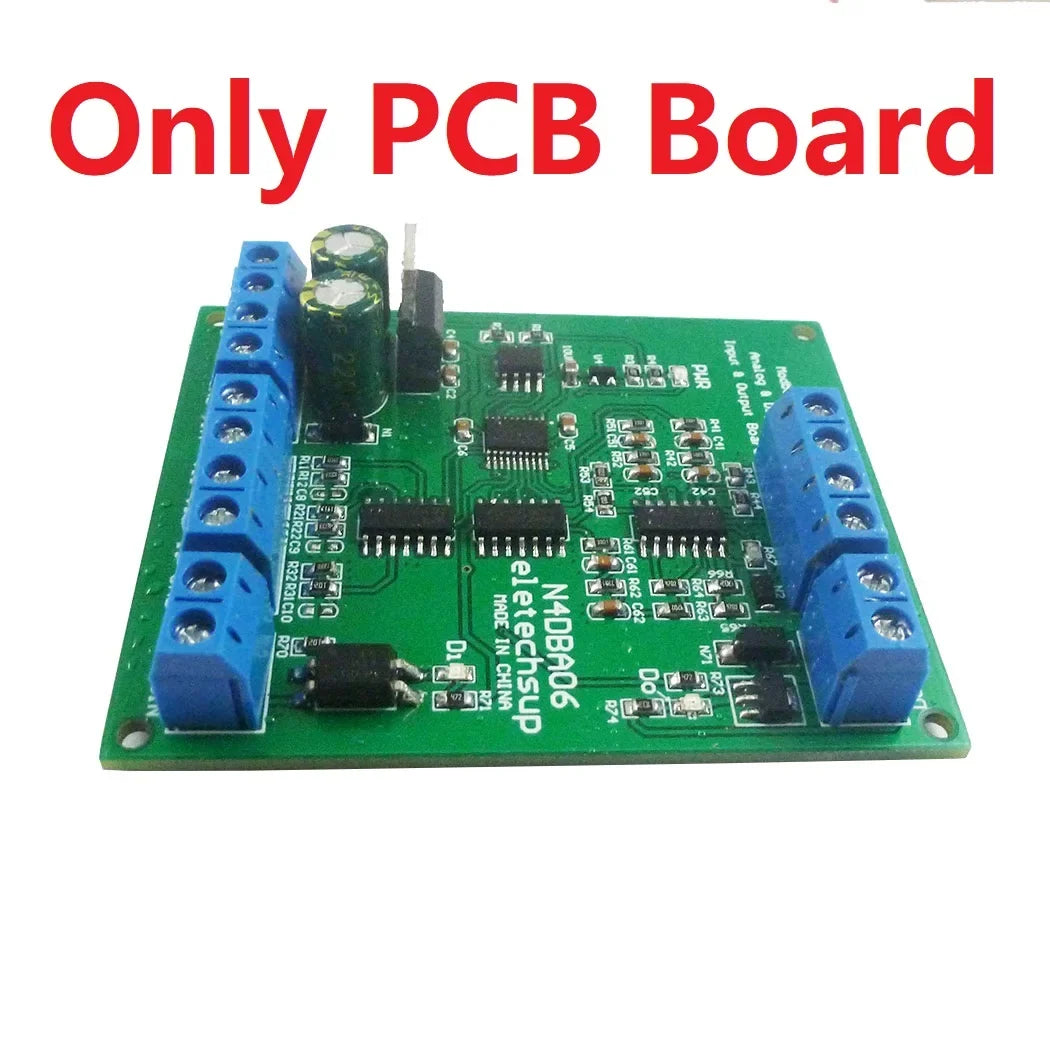

Only PCB Board
$16.06
Skip to product information
Package inlcuded:
Description:
1. Working voltage: DC 12 (DC 12-25V recommended power supply with small ripple)
2. Working current: 14-34MA (Related to the output current)
3. MODBUS RTU instruction support 03 06 function code
4. 3 analog input channels, 1 switch input channel: Vi1 is 0-5V voltage input, Vi2 is 0-10V voltage input, Ii is 0-20MA current input; DiP DiN is switch input port (NPN/PNP Photoelectric isolation input)
5. 3 analog output channels, 1 switch output channel: Vo1 is 0.05-5V voltage output (<20MA), Vo2 is 0.1-10V voltage output (<20MA), Io is 0.5-20MA current output; DoP DoN is Switch output port (maximum drive current 500MA, can directly drive relays and solenoid valves)
6. Voltage resolution is 0.01V, measurement accuracy is 1%; Current resolution is 0.01MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated

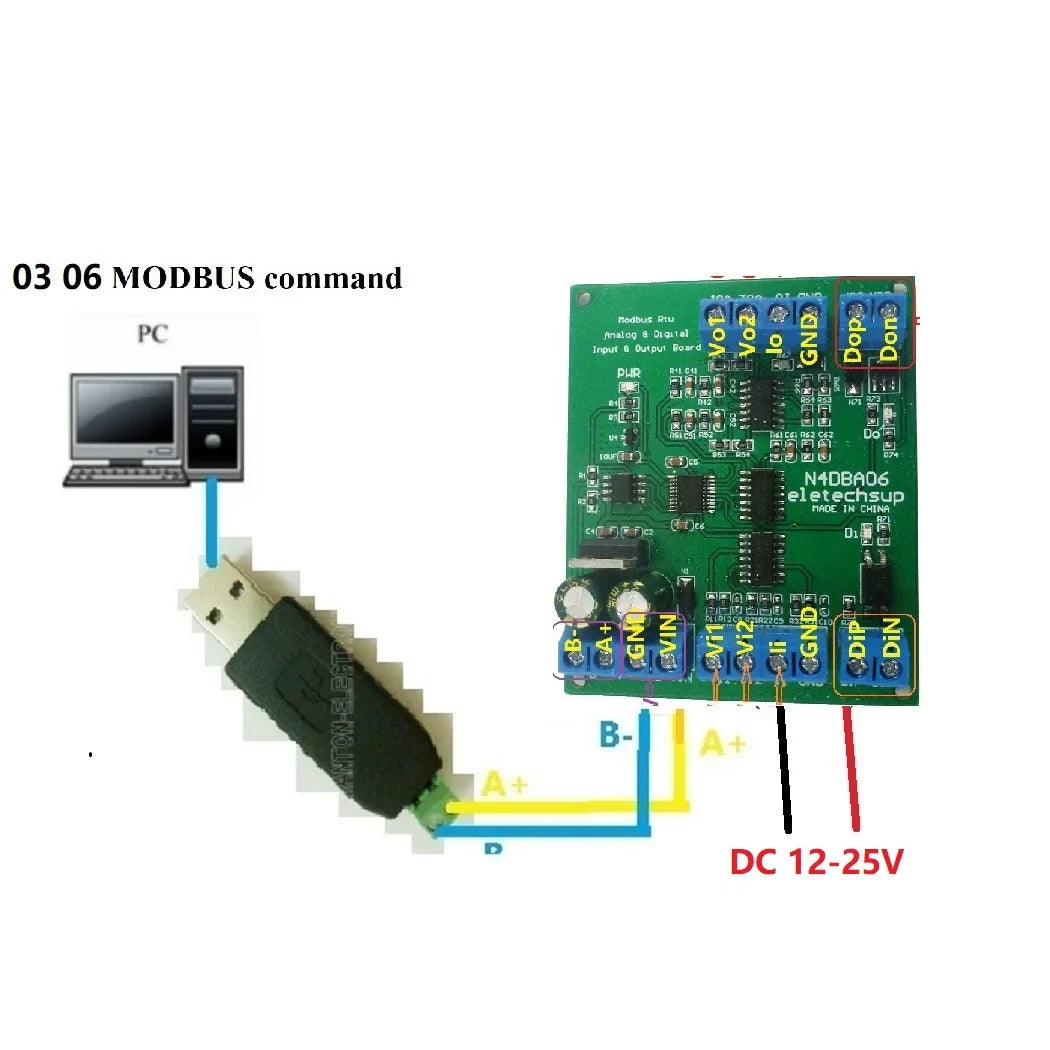

7. MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
8. Under the MODBUS command mode, it can support up to 247 devices in parallel
9. Size: 60 * 72 * 18mm (Only PCB Board); 63 * 87 * 42mm (with Din Rail Box)
10. Weight: 33g (Only PCB Board); 85g (with Din Rail Box)
Instruction manual Please ask us after the purchase

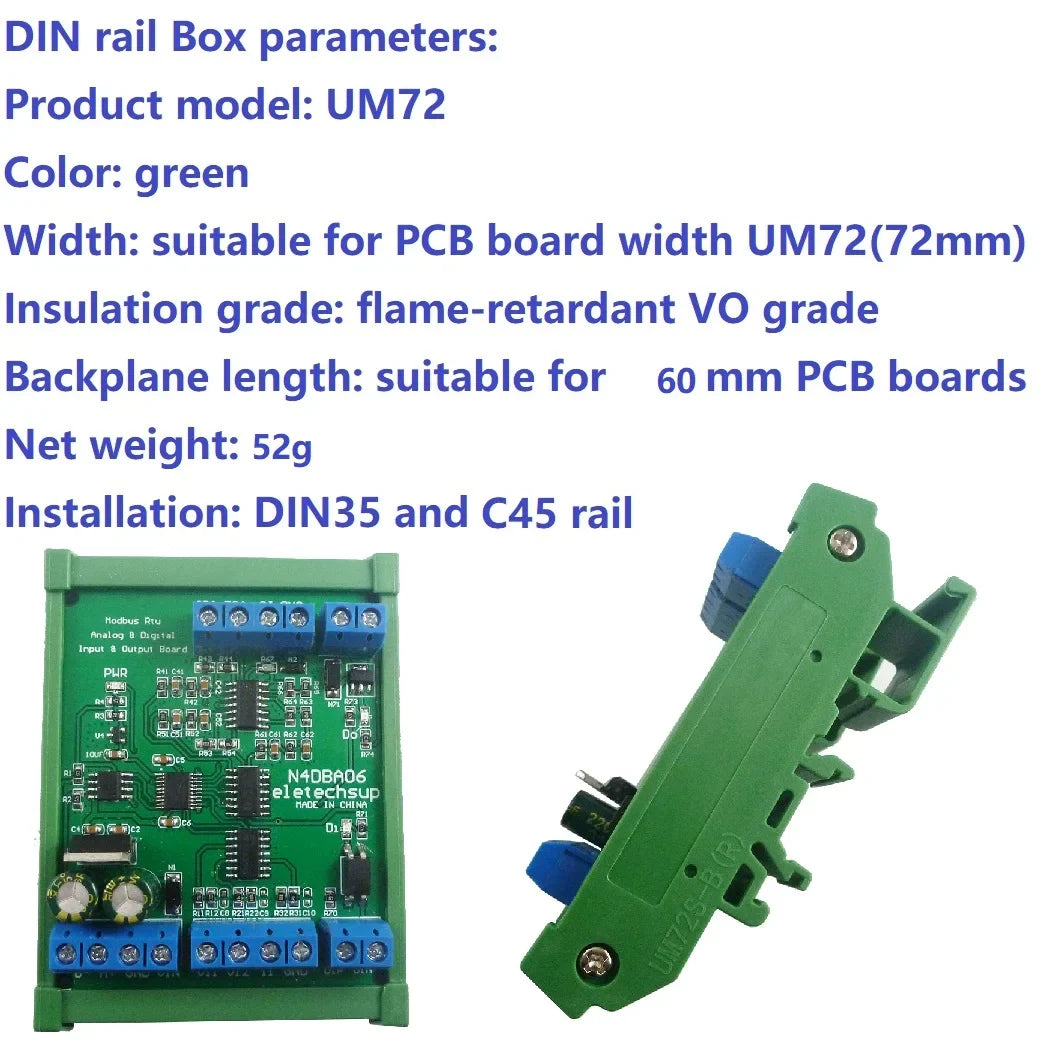

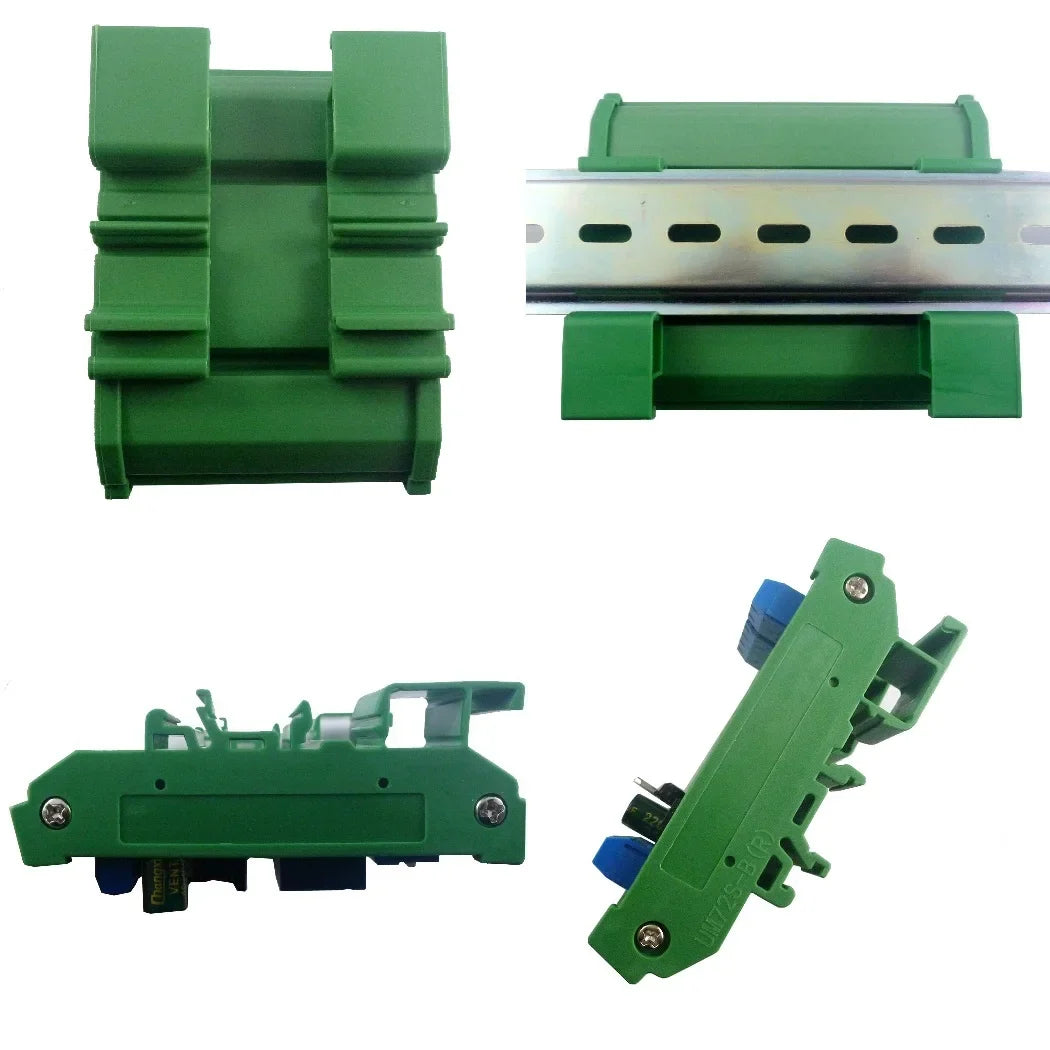

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 60 mm PCB boards
Net weight: 52g
Installation: DIN35 and C45 rail
Note:
1 Channel 1 (Vo1) output voltage range is 0.05V-5V, channel 2 (Vo2) output voltage range is 0.1V-10V, channel 3 (Io) output current range is 0.5-20MA
2 At the moment of power-on, the current and voltage output ports have 10-20MS high pulses

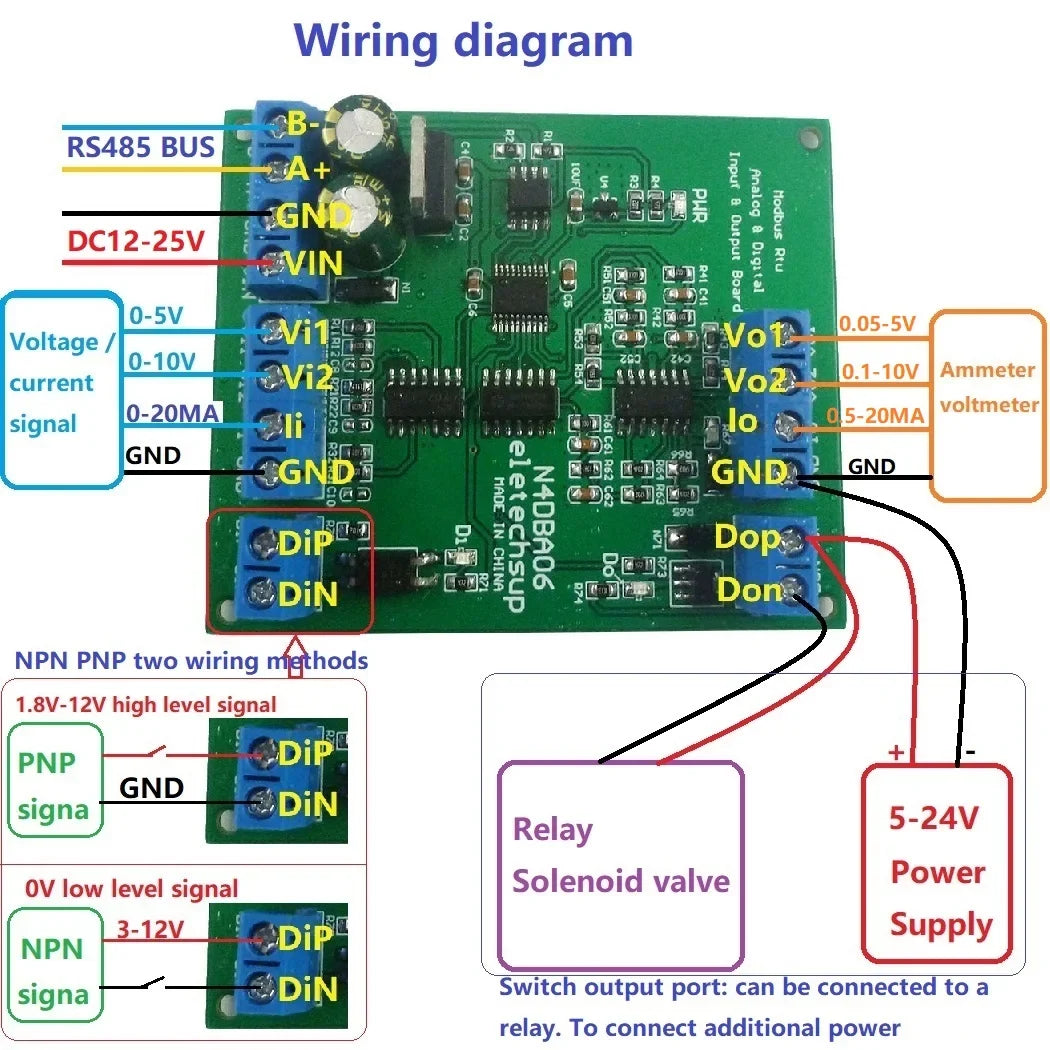

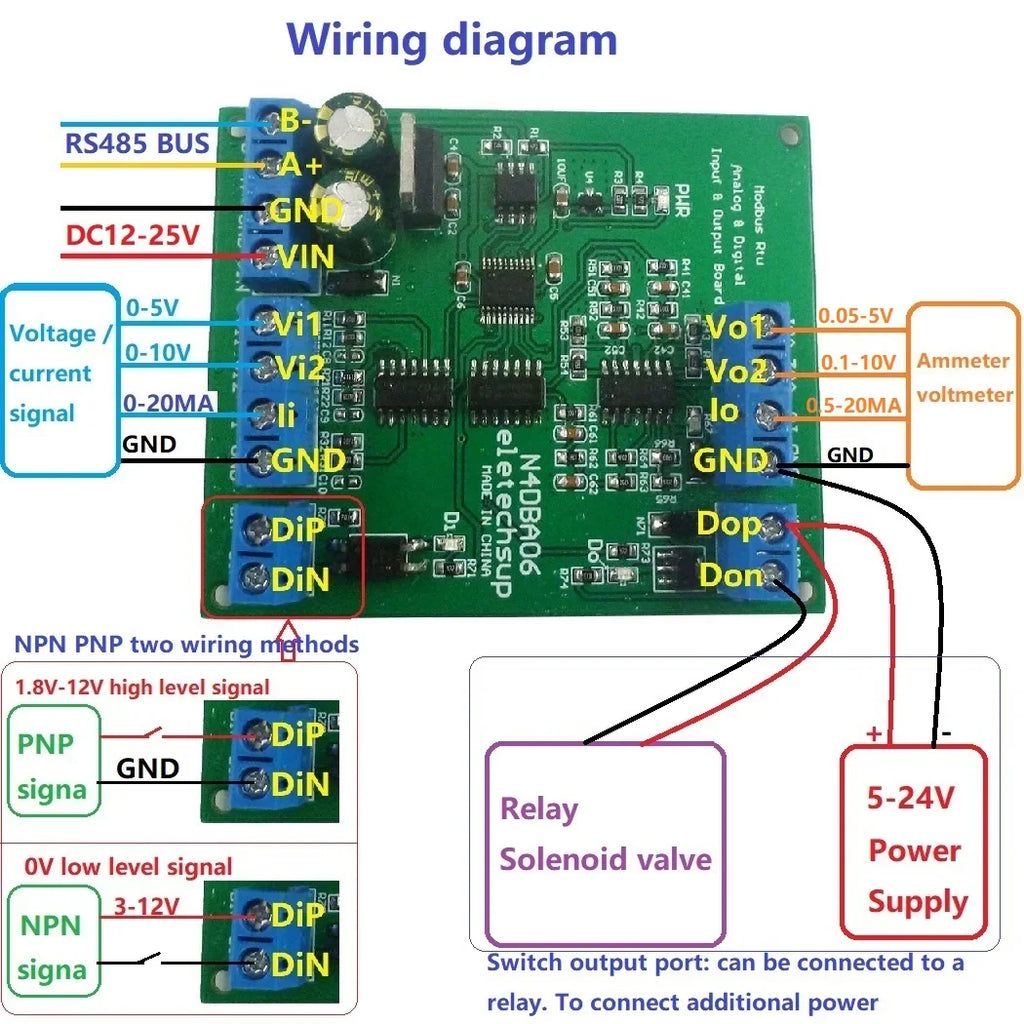

3 DiP DiN is a passive switch input port (see the figure below for wiring)
4 DoP DoN is a passive switch output port (see the figure below for wiring)
Application
4-20MA/0-20MA Sensor Multimeter
Current and voltage signal transmission measuring
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter

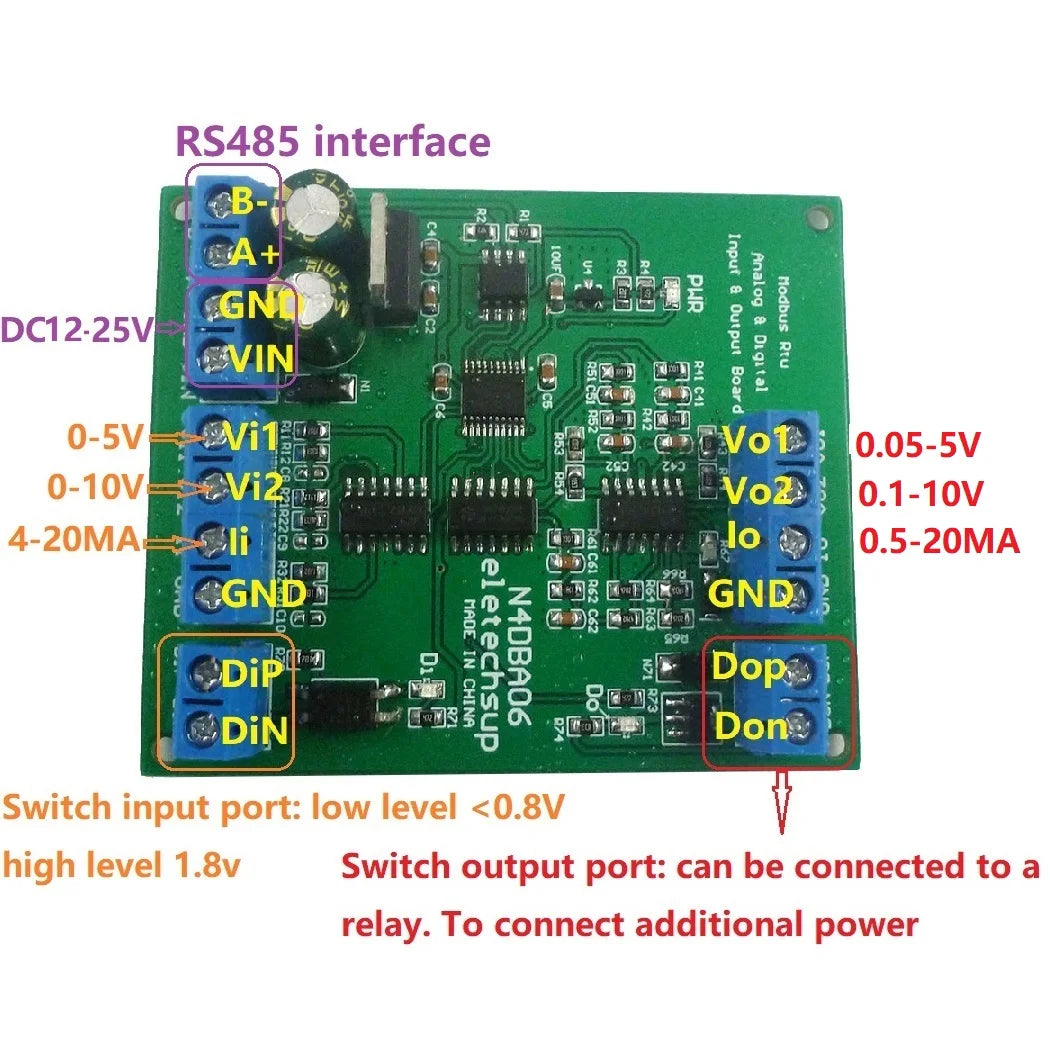

Interface introduction
