N428E02 2CH RS485 Modbus RTU Relay Module – DC 12V 10A Serial Port Switch Board with 6 Commands for PLC PTZ Motor Industrial Control
$5.45
Skip to product information
Package inlcuded:
1 PCS DC 12V 2-Channel RS485 Modbus Rtu Relay Board
Description:
1: Working voltage DC 12V;
2: Standby current (all relays closed) 10MA, 1 relay open 38MA, 2 relays open 67MA
3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

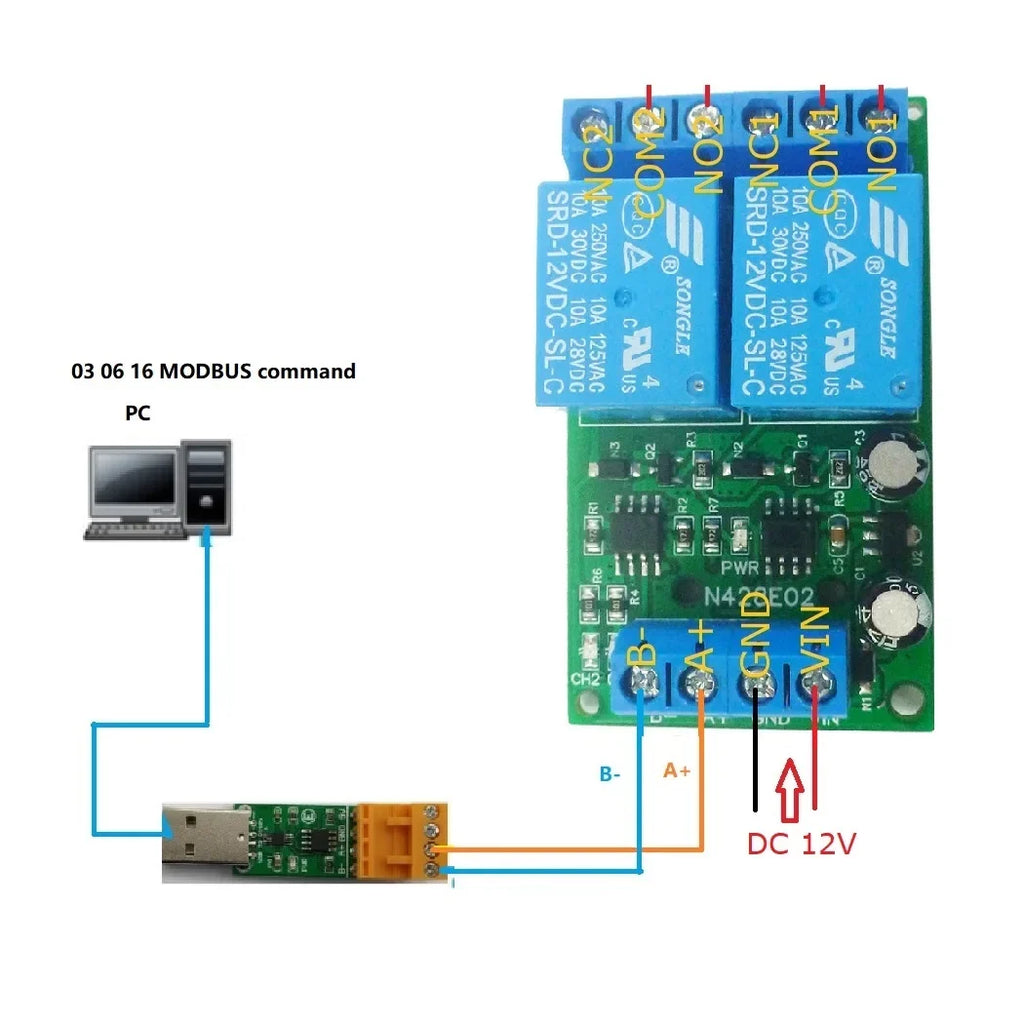

4: MODBUS RTU command, Support 03 06 16 function code
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

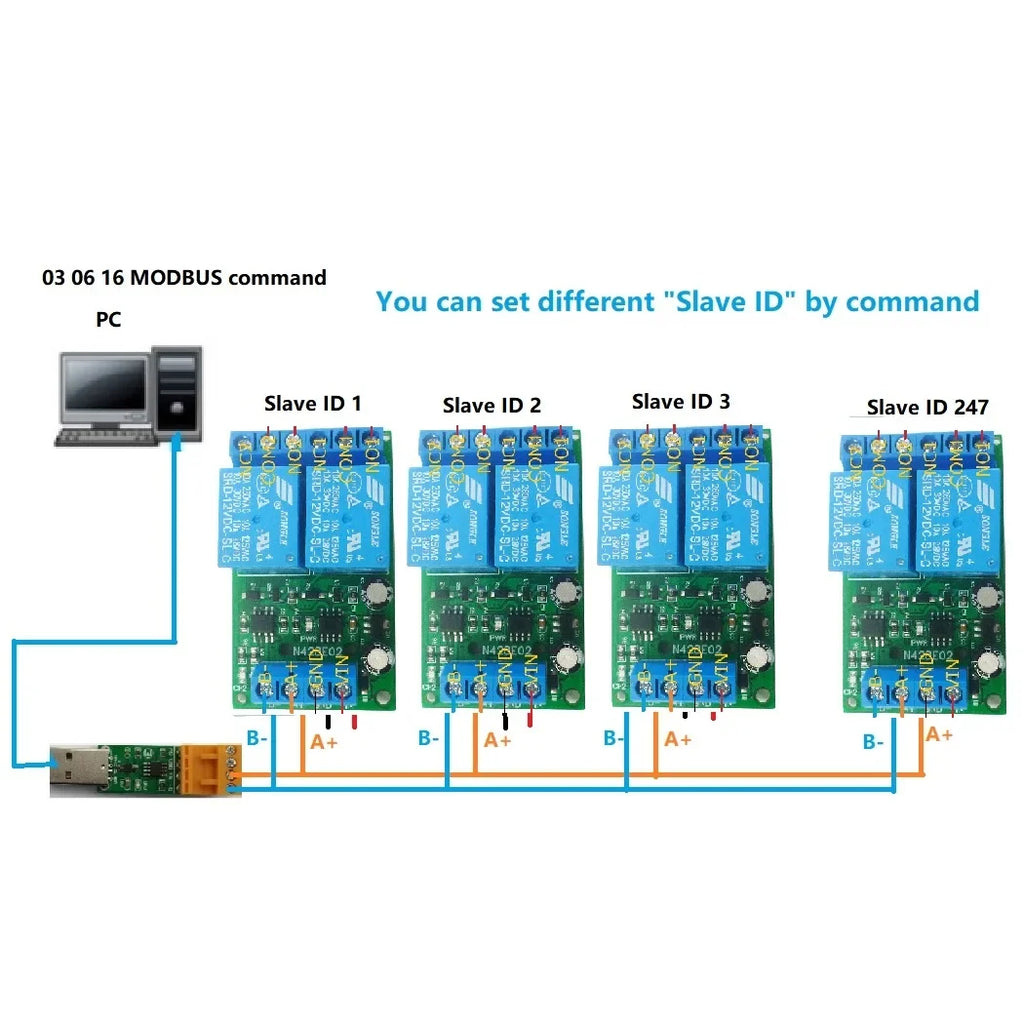

7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
9 The parity can be none parity, even parity and odd parity
10 Size: 60*35*19mm
11 Weight: 32g
12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
For more information, please contact me
Application
PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
N428E02 2CH RS485 Modbus RTU Relay Module – DC 12V 10A Serial Port Switch Board with 6 Commands for PLC PTZ Motor Industrial Control
$5.45
Product Name: 2ch 12VDC RS485 Modbus RTU Relay PC UART Serial Port Switch for Motor PLC Camera Industrial Control System
Package inlcuded:
1 PCS DC 12V 2-Channel RS485 Modbus Rtu Relay Board
Description:
1: Working voltage DC 12V;
2: Standby current (all relays closed) 10MA, 1 relay open 38MA, 2 relays open 67MA
3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: MODBUS RTU command, Support 03 06 16 function code
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
9 The parity can be none parity, even parity and odd parity
10 Size: 60*35*19mm
11 Weight: 32g
12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
For more information, please contact me
Application
PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;

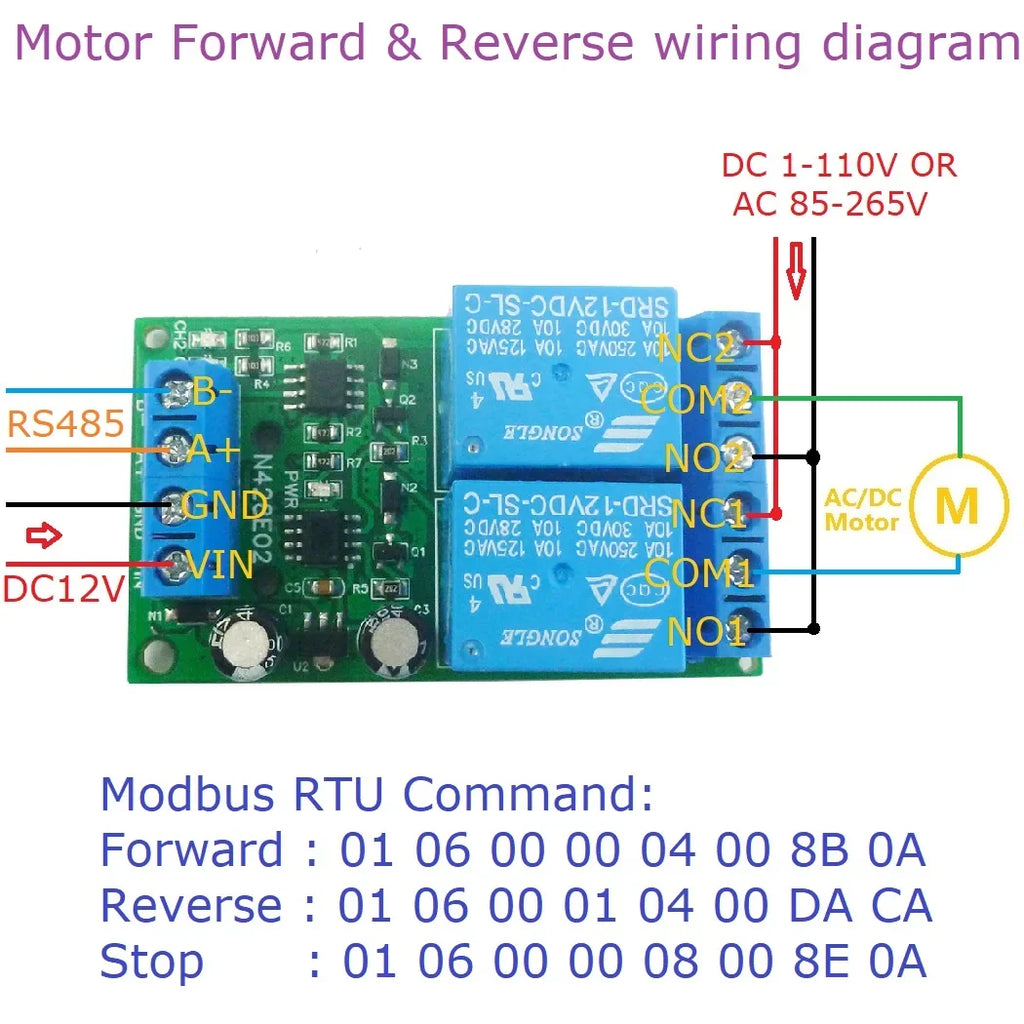

Motor FW & BW
Automatic curtain control

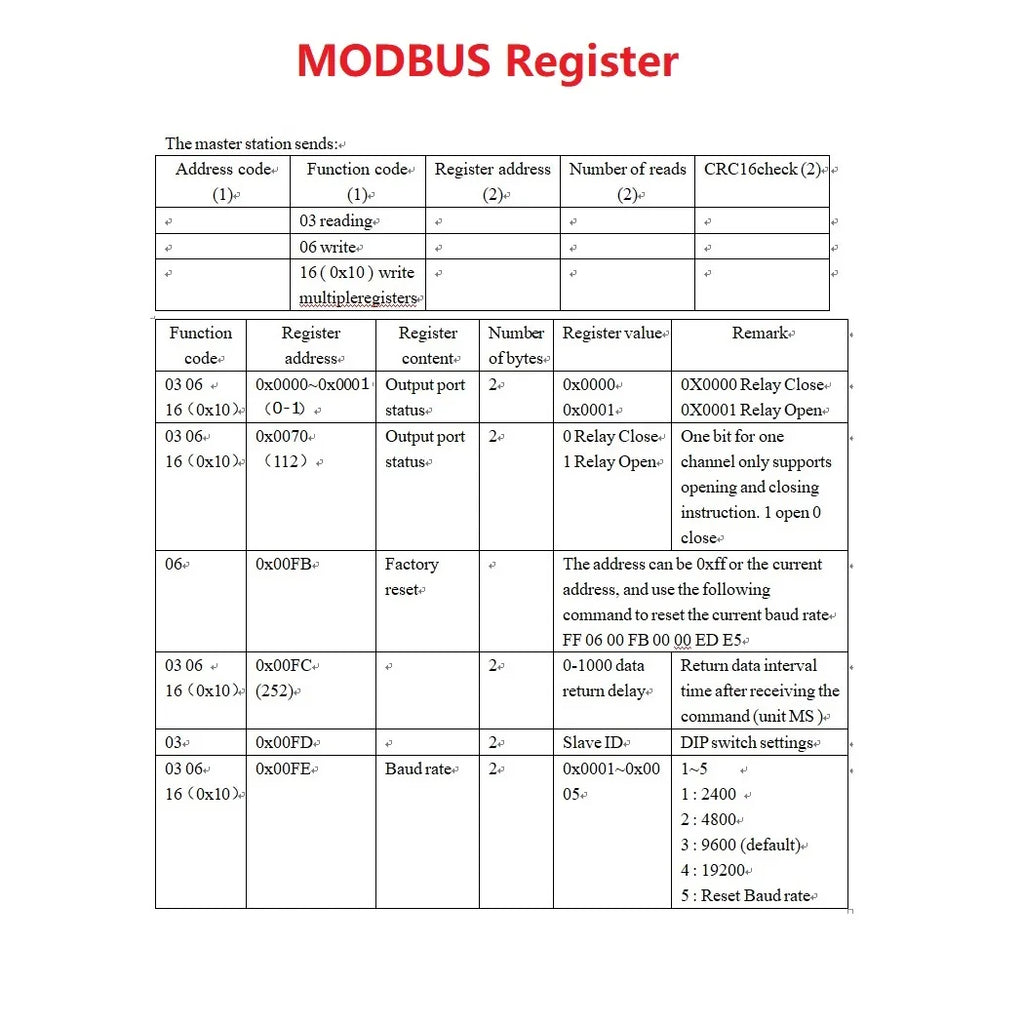

Modbus Rtu Register:
Automatic curtain control
Modbus Rtu Register:
