Product Name: 6A 3V 3.3V 3.7V 4.5V 5V 6V DC electronic switch Module Latch Bistable Trigger


Packing list:


10 PCS 2.5-6V 6A Bistable Self-locking Trigger Switch



Description:

Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.

Low standby power consumption, high output power.


Electrical parameters:

Power supply voltage:DC 2.5V-6V
Standby current:less than 10uA
Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A
Allowing continuous output current:
5A(5V-6V)
4A(3.7V-5V)
2A(2.5V-3.7V)
Pin pitch 2.54mm.
Size:5.4mm x 10.1mm x 2.6mm.
Weight : 0.55g

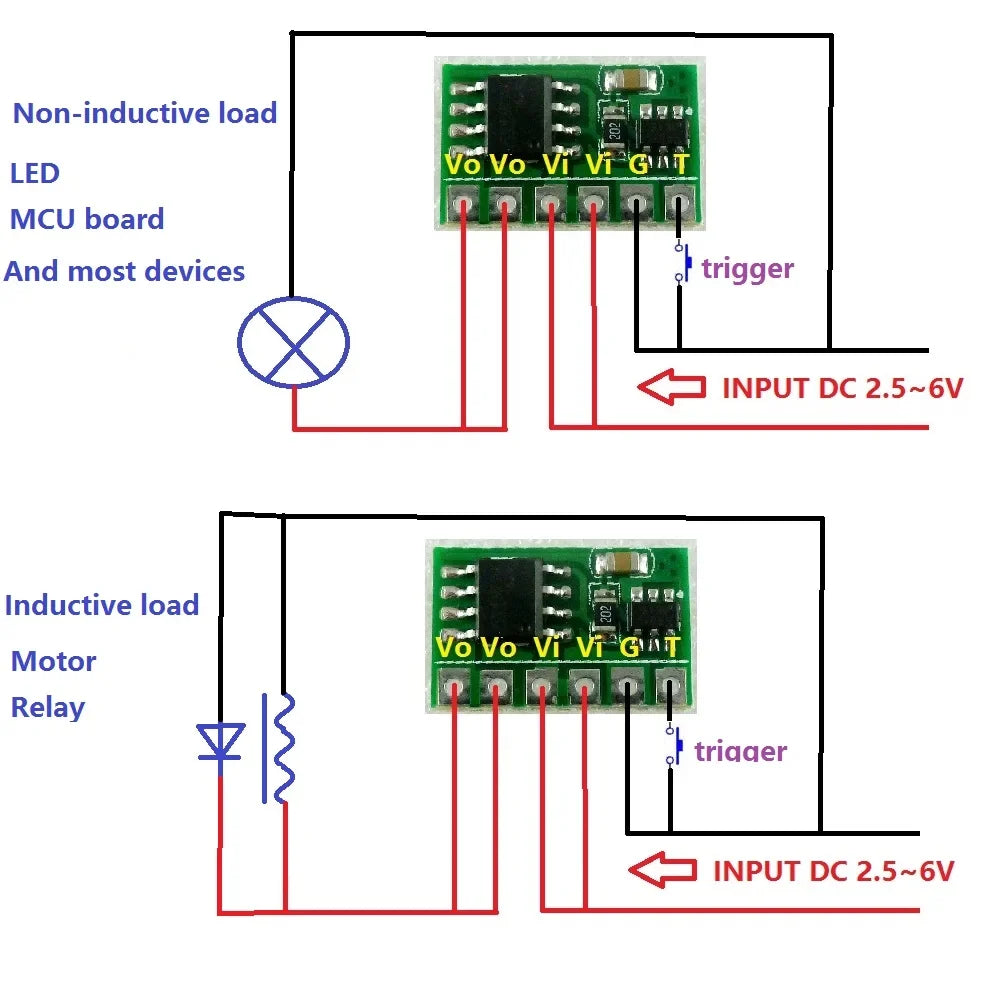

Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

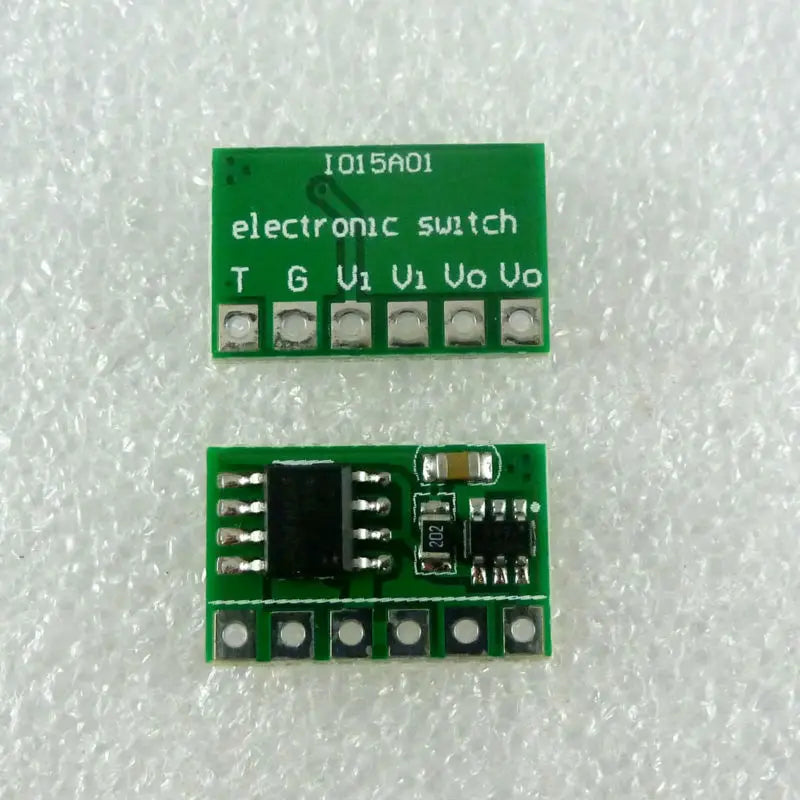

Pin description:

Vo:output;
Vi:power supply;
G:power ground.
T:trigger signal input terminal;



Applications:

MCU Development Board
Motor
mobile power
LED Lighting
5V Relay
esp8266 WIFI MODULE
mobile power
Solar battery
