Product Name: DC 5-28V RS485 Modbus RTU 0.36 0.56 inch 4-6 Bit Arabic Numerals English Characters Display Module Digital Tube LED Board


Packing list:


1 PCS DM36B06 DM56A04 6-digit 0.36-inch /4-digit 0.56-inch RS485 digital tube Module






Description:

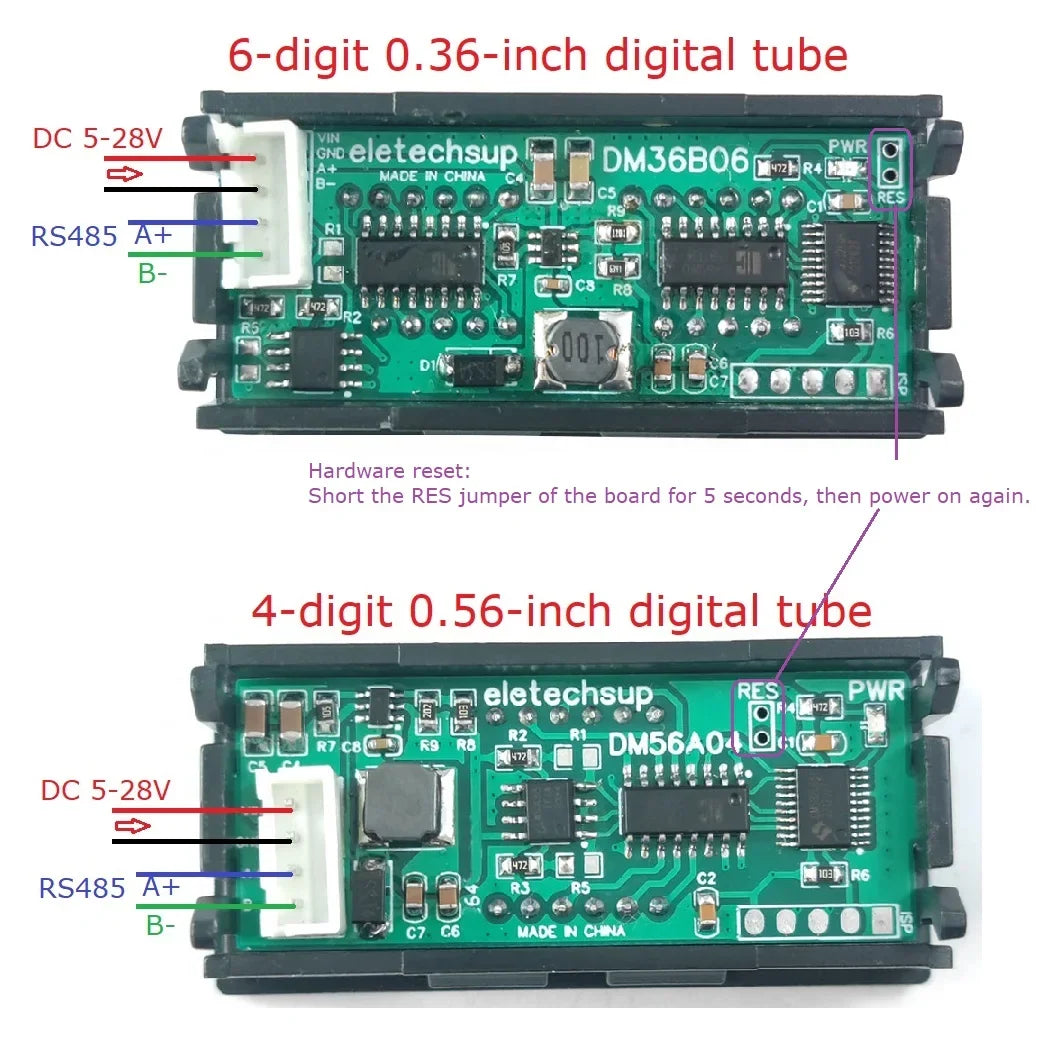

Working voltage: DC 5~28V
Working current: 4.3~42mA (related to the brightness of the digital tube)
MODBUS RTU protocol, 03 read command, 06 or 16 write command.

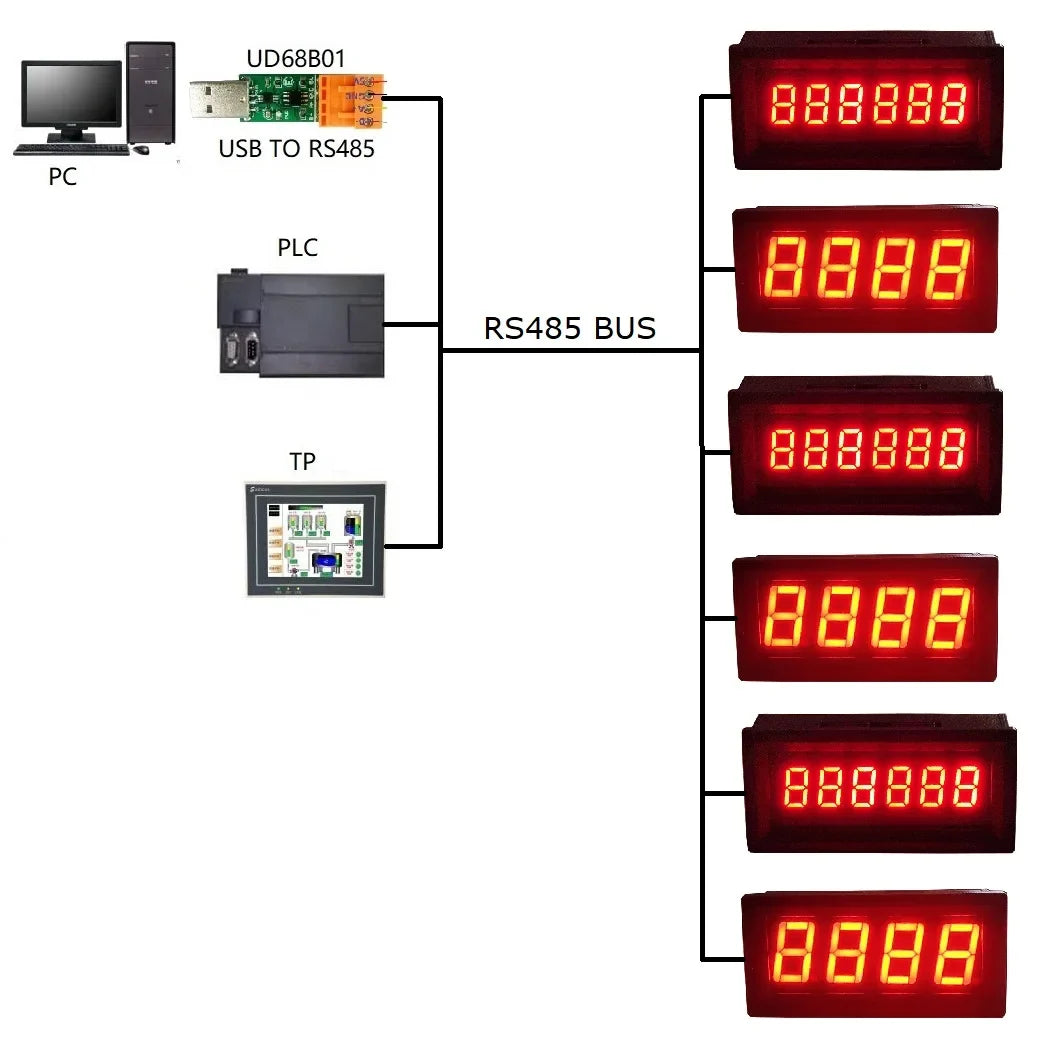

Device address: 1~247, default 1, by modifying the 485 address, up to 247 modules can be used in cascade (more than 32, please use RS485 repeater)
Digital tube color: red

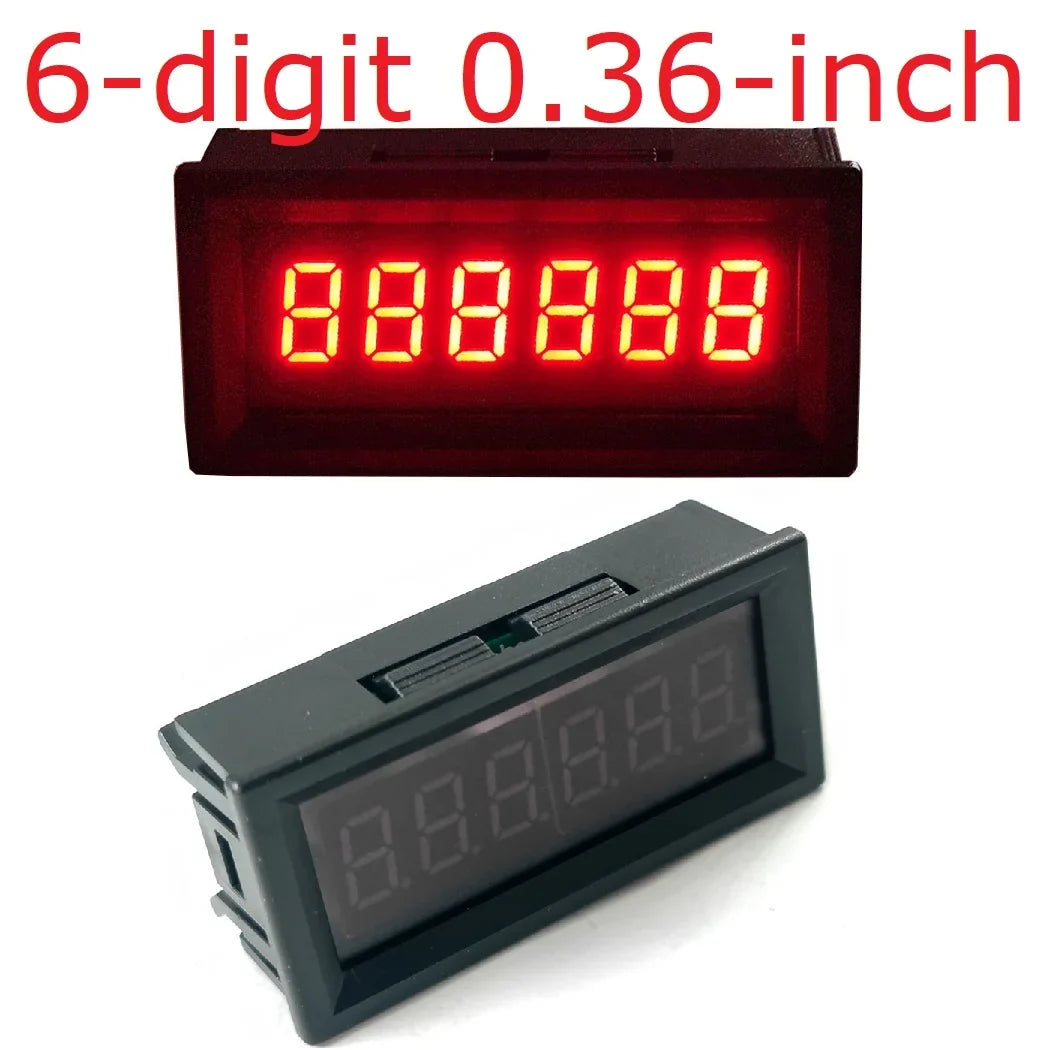

Digital tube tube digits: 6 digits 0.36 inches / 4 digits 0.56 inches
Communication interface: RS485
Function: It can display numbers, ASCII characters, letters, floating-point numbers, negative numbers, etc., and the brightness can be adjusted; it supports electronic label function, and the initial display content can be set after power-on;

Supported baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
Parity: No parity Even parity Odd parity
Size : 60.2 X 28.7 X 21.7MM
Weight: 6 digits 0.36 inches 16.5grams, 4 digits 0.56 inches 20grams


Shell Dimensions:

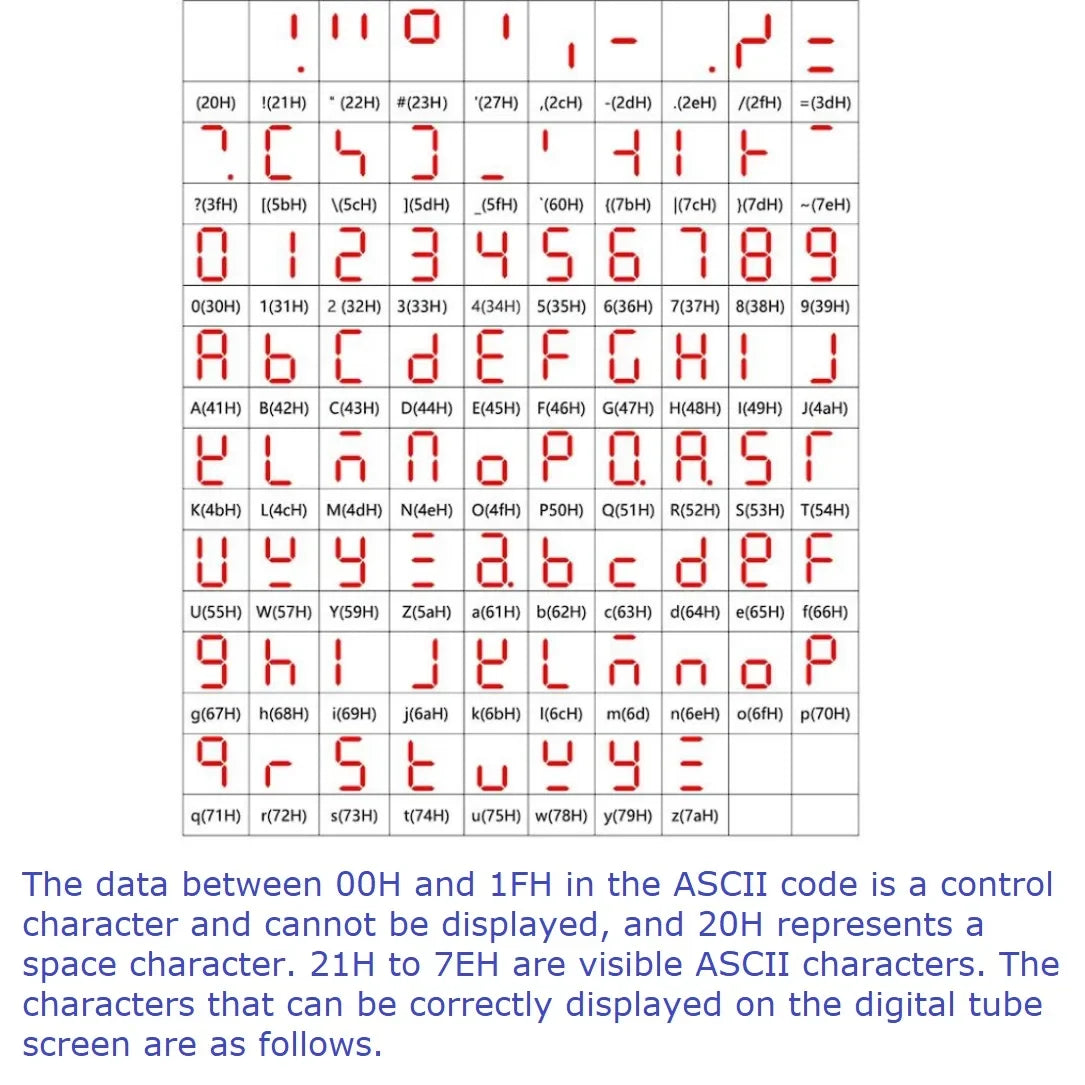

Characters that can be displayed:
