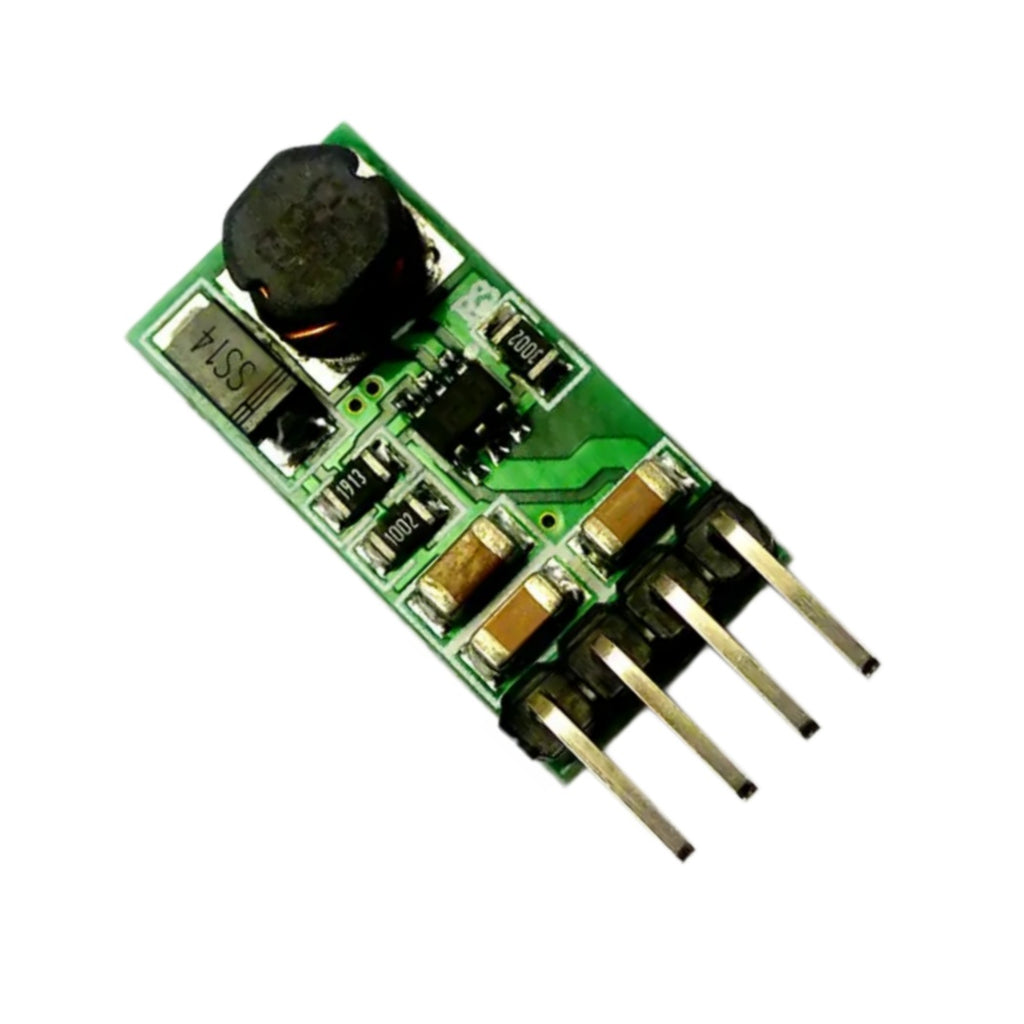

CE014 3V 3.3V 3.7V 4.5V 5V 6V to 5V 9V 12V DC-DC Converter Step-Up Boost Current Mode PWM Voltage Transformation Module
5V
$10.00
Skip to product information
Input voltage 2.6~6V, output 5V (deviation +-6%)
Maximum input current : 1.2A
Long-term work Current : 1A
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD Development Board friendly.
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
RS485 PLC Modbus RTU
VCR
PDA
LED Lighting
Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter, a t this time of the input voltage is very low
CE014 3V 3.3V 3.7V 4.5V 5V 6V to 5V 9V 12V DC-DC Converter Step-Up Boost Current Mode PWM Voltage Transformation Module
$10.00
Product Name: 3V 3.3V 3.7V 4.5V 5V 6V to 5V 9V 12V DC-DC Converter Step-Up Boost Current Mode PWM Voltage Transformation Module
Packing list:
10 PCS 5W 3V-6V TO 5V 9V 12V Boost Step-UP Voltage Regulator Module

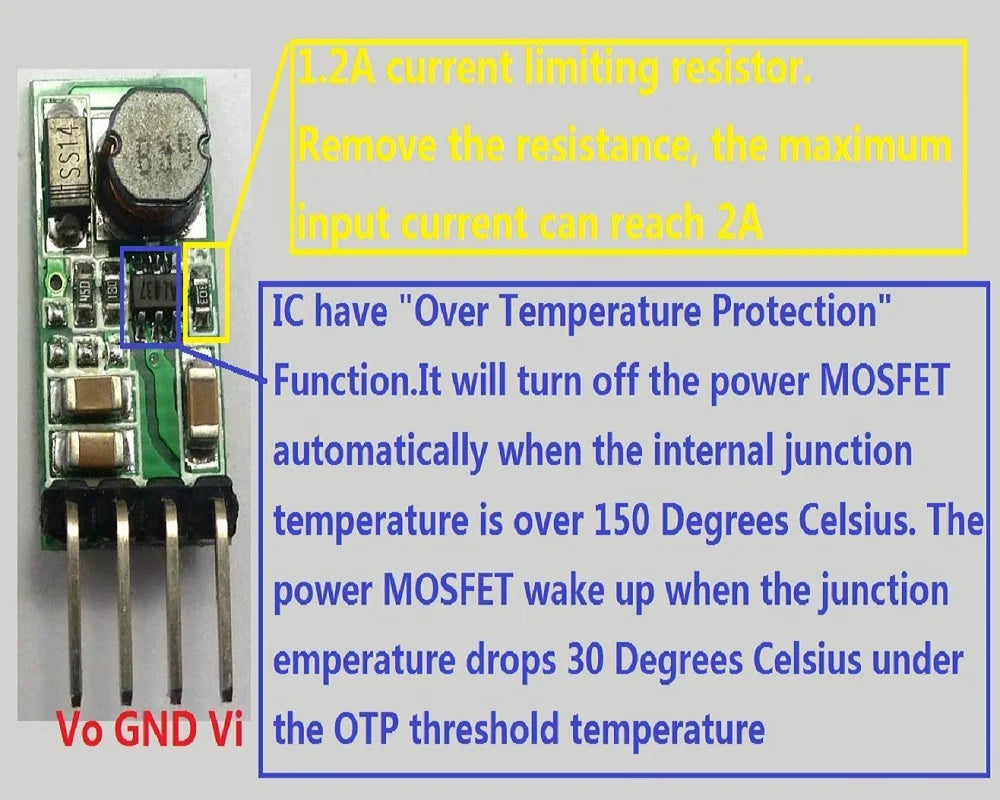

Description:

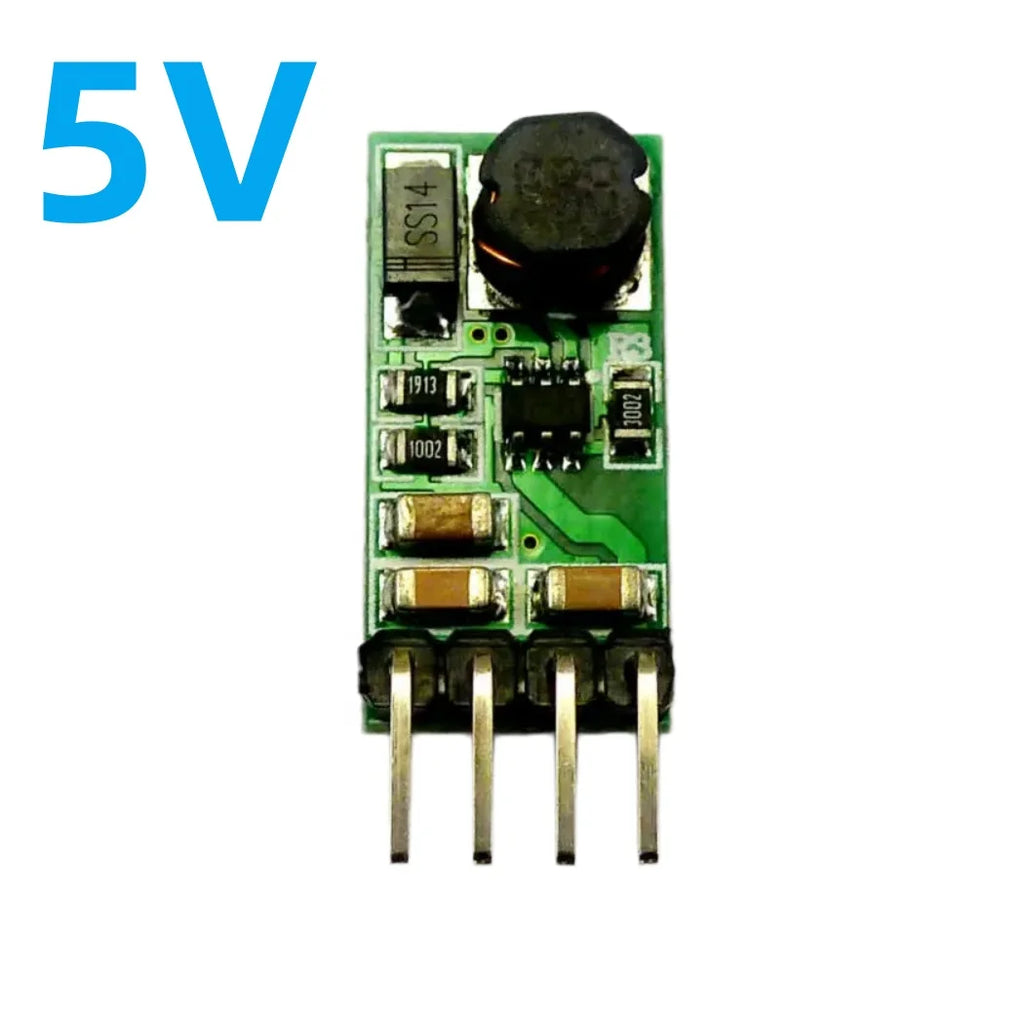

Input voltage 2.6~6V, output 5V (deviation +-6%)
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 79-91%
Start Voltage 2.6V, Output Current 50MA
INPUT 2.8V 1A; OUTPUT 5V 290MA
INPUT 3V 1A; OUTPUT 5V 480MA
INPUT 3.3V 1A; OUTPUT 5V 590MA
INPUT 3.7V 1A; OUTPUT 5V 650MA
INPUT 4.5V 1A; OUTPUT 5V 790MA
INPUT 2.8V 1A; OUTPUT 5V 290MA
INPUT 3V 1A; OUTPUT 5V 480MA
INPUT 3.3V 1A; OUTPUT 5V 590MA
INPUT 3.7V 1A; OUTPUT 5V 650MA
INPUT 4.5V 1A; OUTPUT 5V 790MA

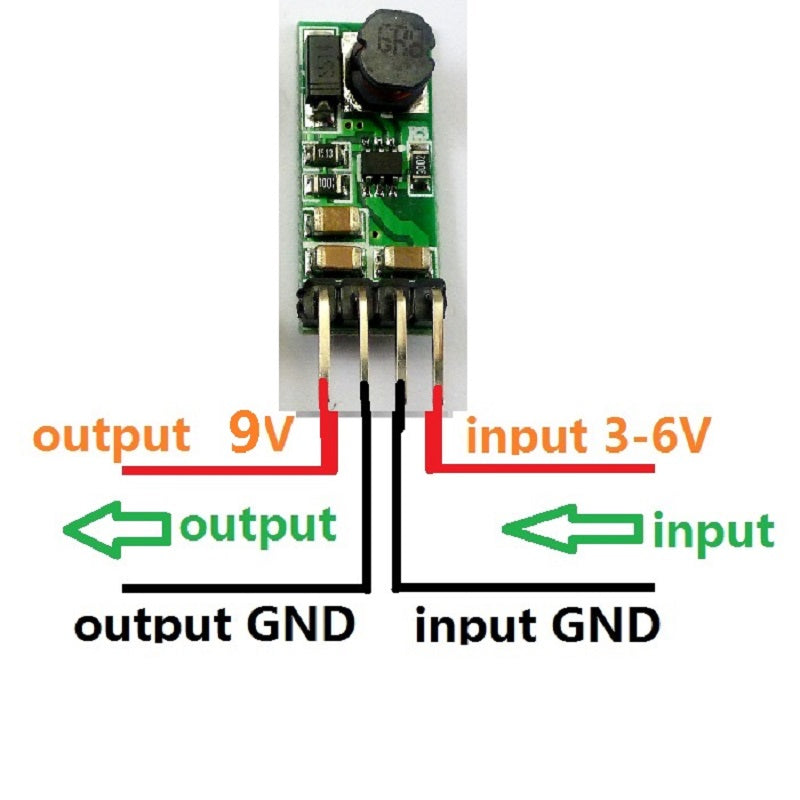

Input voltage 2.8~6V, output 9V (deviation +-5%)
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 81-91%
Start Voltage 2.8V, Output Current 60MA
INPUT 3V 1A; OUTPUT 9V 290MA
INPUT 3.3V 1A; OUTPUT 9V 330MA
INPUT 3.7V 1A; OUTPUT 9V 360MA
INPUT 4.5V 1A; OUTPUT 9V 440MA
INPUT 5V 1A; OUTPUT 9V 490MA
INPUT 6V 1A; OUTPUT 9V 590MA

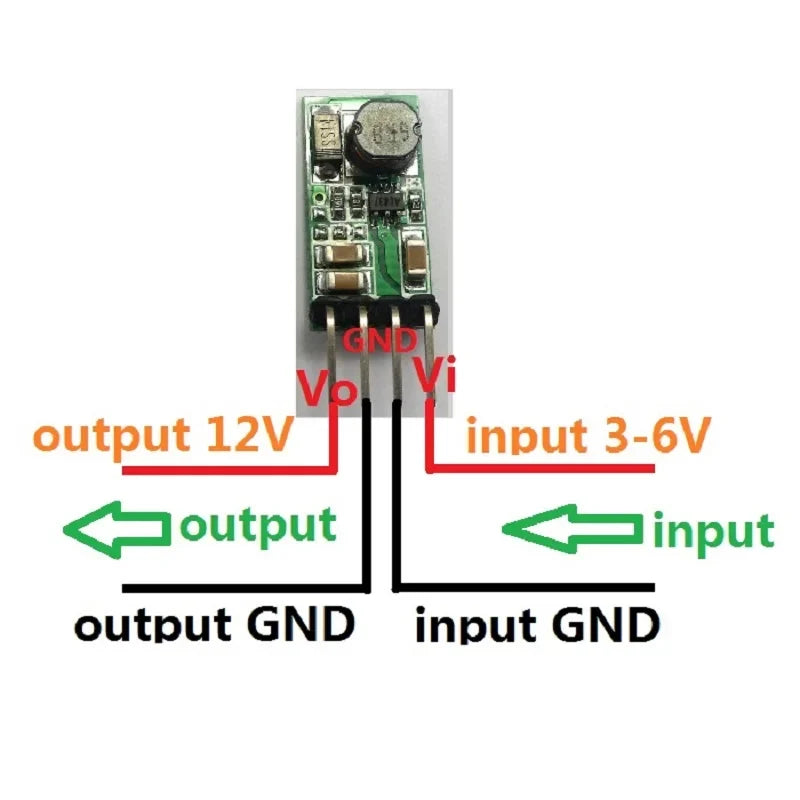

Input voltage 2.8~6V, output 12V (deviation +-5%)
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
Start Voltage 2.8V, Output Current 50MA
INPUT 3V 1A; OUTPUT 12V 220MA
INPUT 3.3V 1A; OUTPUT 12V 250MA
INPUT 3.7V 1A; OUTPUT 12V 280MA
INPUT 4.5V 1A; OUTPUT 12V 340MA
INPUT 5V 1A; OUTPUT 12V 370MA
INPUT 6V 1A; OUTPUT 12V 450MA
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius

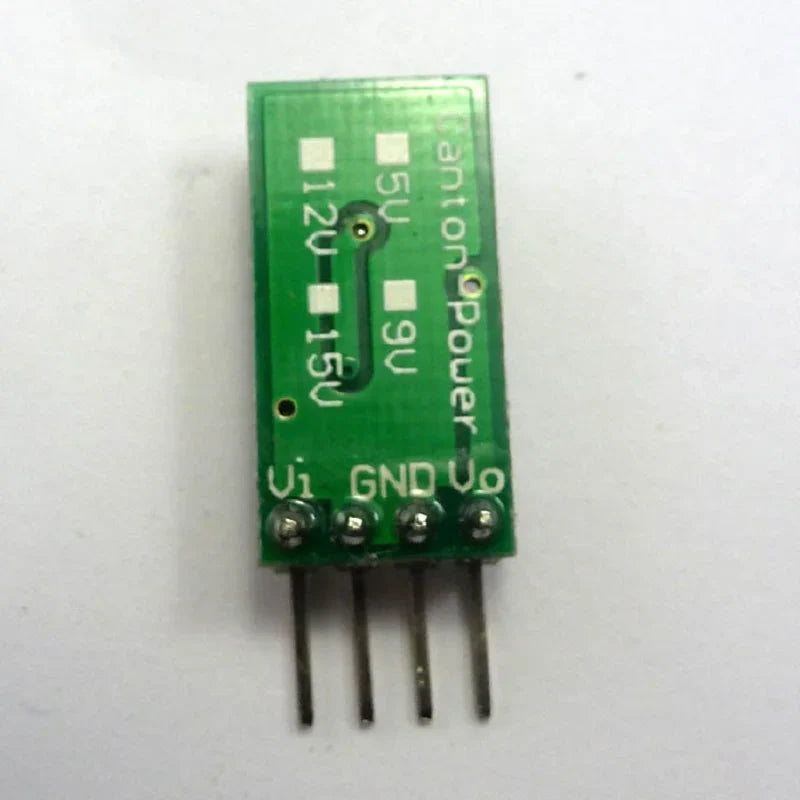

2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD Development Board friendly.

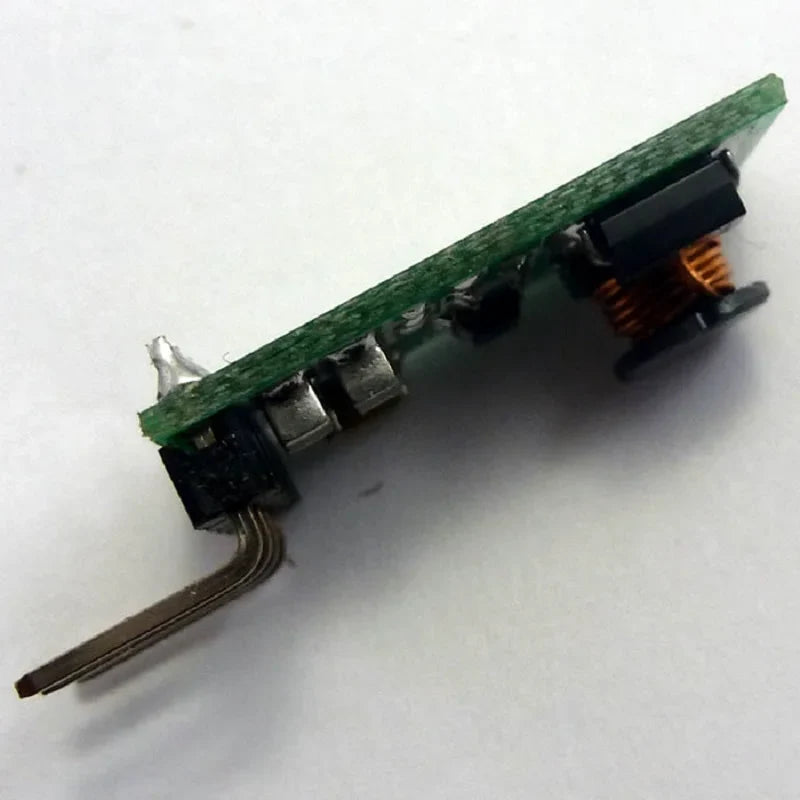

Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small)
Weight : about 1.4g(Very light)
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
RS485 PLC Modbus RTU
VCR
PDA
LED Lighting
Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter, a t this time of the input voltage is very low
